7530

High Capacity Reach-Fork Truck

Narrow Aisle Forklift

  • greater storage flexibility, high capacity reach truck
    Raymond lift trucks provide stability for operator confidence

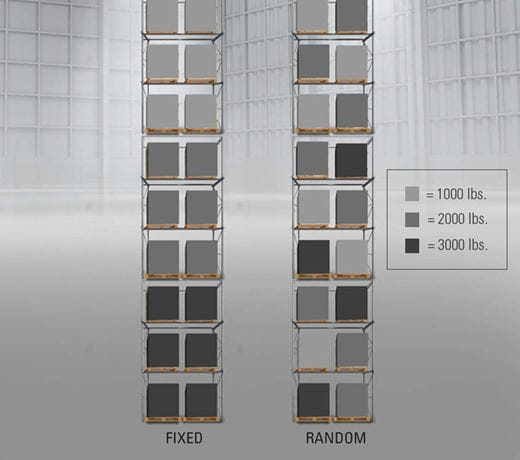

    Greater Storage Flexibility

    Capable of lifting full pallets to top beam, and 2,000 lbs. to 505" (Single/Deep-Reach) allows flexible pallet storage. x
    Greater Storage Flexibility
  • high capacity reach truck, increased uptime
    Raymond lift trucks are engineered for Eco-Performance

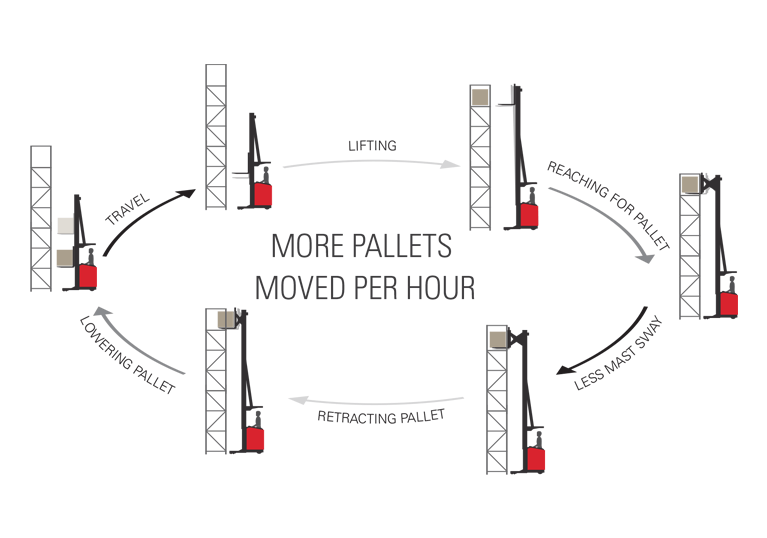

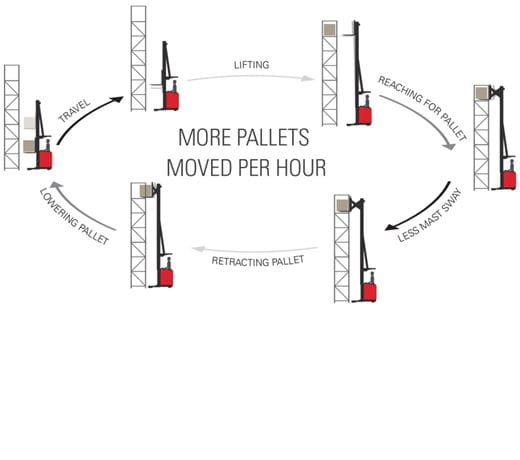

    15% Faster Cycle Times

    Independent third party testing found the 7530 reach truck to have 15% faster cycle times for more pallet moves per hour. x
    15% Faster Cycle Times
  • forklift production, visibility, reach truck
    Raymond engineers productive lift trucks

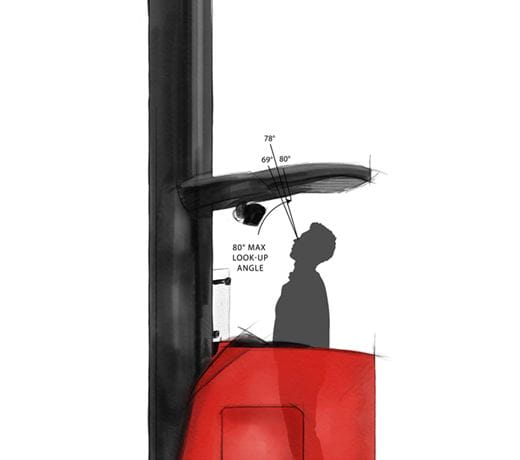

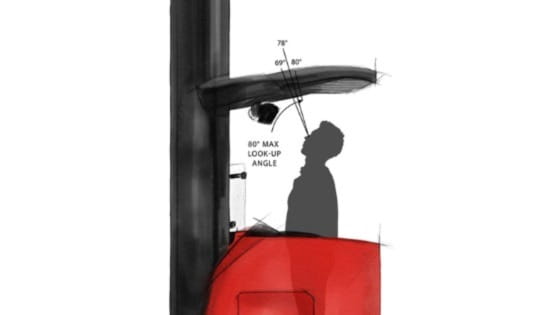

    Better Visibility & Operator Comfort

    Universal Stance allows operators to face forward and look directly at rack, increasing operator comfort and visibility at height. x
    Better Visibility & Operator Comfort
  • Reach Lift, Raymond Forklift A frame suspension
    Raymond lift trucks provide stability for operator confidence

    Load Stability at Height

    Unique stability system, including a 4-point stability design and heavy duty mast frame, reduces lateral movement when lifting heavy loads at height. x
    Load Stability at Height
  • high capacity reach truck, increased uptime
    Raymond engineers productive lift trucks

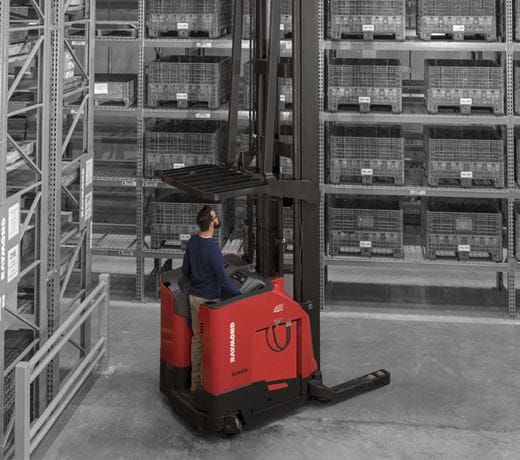

    More Uptime with Greater Reliability

    Engineered with fewer and more durable parts, minimizes and simplifies maintenance. x
    More Uptime with Greater Reliability
  • high capacity reach truck, reach fork truck
  • greater storage flexibility, high capacity reach truck
  • high capacity reach truck, increased uptime
  • forklift production, visibility, reach truck
  • Reach Lift, Raymond Forklift A frame suspension
  • high capacity reach truck, increased uptime
  • Overview
  • Specifications

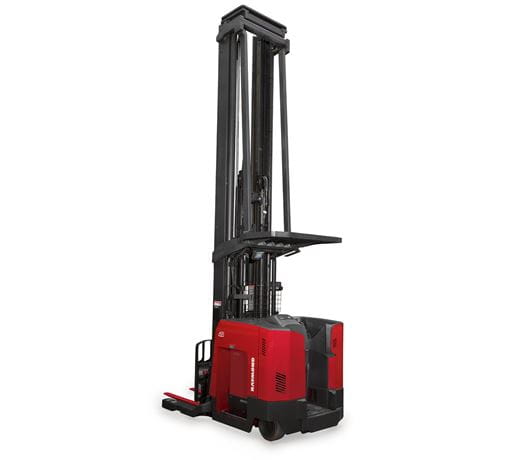

Highest. Heaviest. Fastest.

The Raymond High Capacity Reach-Fork truck offers the highest lift heights, heaviest capacities and fastest cycle times, providing greater capacity retention and improved cube utilization.
Inquire
  • Battery: 36 volt
  • Capacity: 4,500 lbs.
    Capable of lifting 2,000 lbs. to 505" (Single/Deep-Reach)
  • Elevated Height: 542" maximum
  • Baseleg Opening: 41", 42" and 45"
  • Customized for Your Application: Hundreds of configurations available to meet your specific needs

Built to Perform

  • high capacity reach truck, reach fork truck
    Faster Cycle Times
    ACR System delivers quicker acceleration and electronic braking, faster lift and lower speeds, and smooth directional changes for 15% faster cycle times than competitive trucks.
  • Raymond reach forklift suspension system
    Superior Load Handling
    Exclusive Steered Idler prevents caster snap, reducing the time it takes an operator to back away from a rack with a load at high elevations.
  • Raymond reach trucks visibility

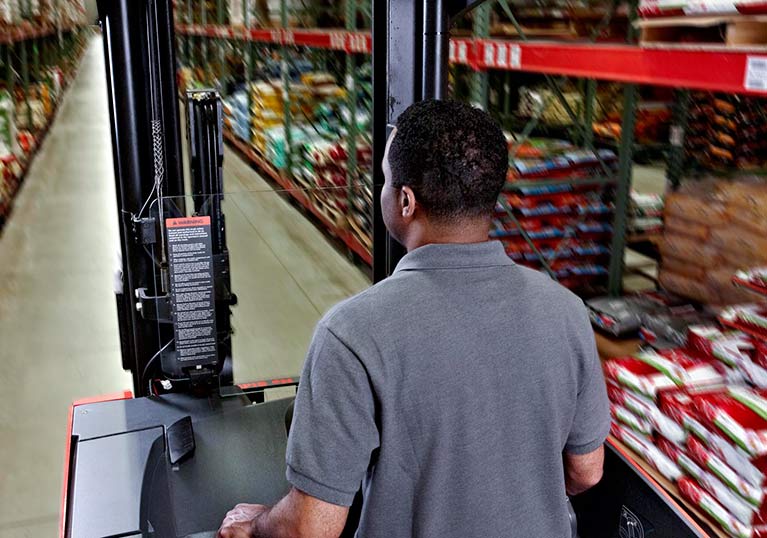

    Greater Visibility
    Patented Open View Mast provides superior visibility for increased productivity and operator confidence, fewer errors and less product, rack and facility damage.
    • Raymond Reach-Fork Trucks ACR System Drive Motor

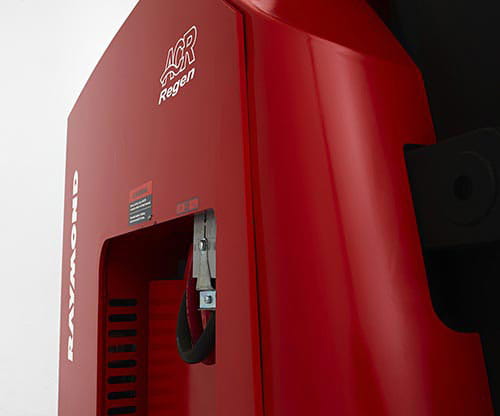

      Energy Conscious System
      ACR Control System provides faster speeds and smoother operations to assist in moving more pallets efficiently and economically.
    • high capacity reach truck, regenerative lowering
      Regenerative Lowering
      7530/7730 reach trucks create power through regenerative lowering, returning amps back to the battery when the truck is lowering a load, resulting in fewer battery changes and reduced downtime.
    • high capacity reach truck, reach fork truck
      Efficient Design
      A larger displacement pump optimizes the motor for longer battery shift life so trucks stay on the floor longer.
      • Raymond Reach Truck inertial dampener
        Smooth Operation
        Inertial Dampener reduces shocks and sways before they reach the operator compartment—enhancing stability and operator performance.
      • Raymond reach-fork a-frame suspension

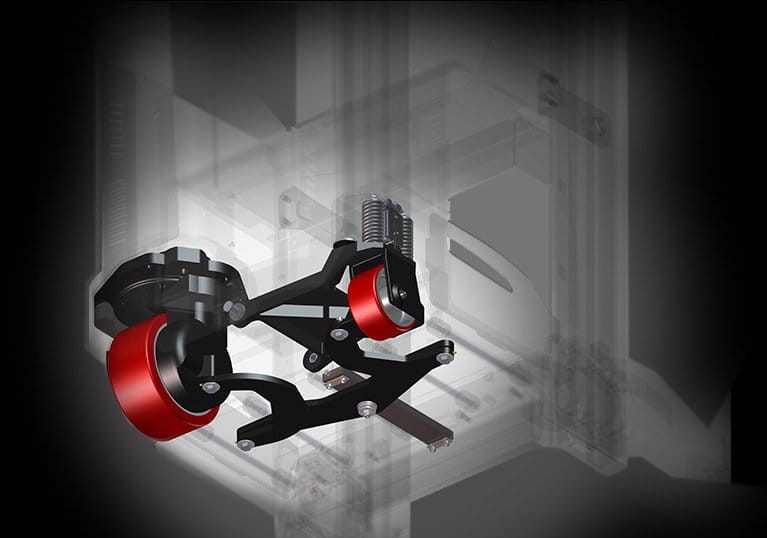

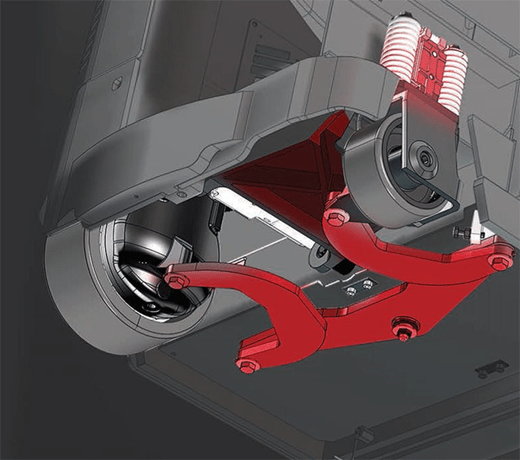

        Precise Pallet Handling
        A-Frame Suspension delivers smooth, precise handling with full-time traction and steering alignment.
      • Steered Idler Design
        Greater Confidence at Height
        Heavy duty mast frame offers vertical stability when lifting heavier loads to higher heights for less mast sway and greater operator confidence.
        • high capacity reach truck, increased visibility
          Superior Visibility and Comfort
          Universal Stance allows the operator to face forward and look straight up at loads providing more operator comfort when working in high racking applications.
        • Raymond Reach-Fork trucks universal stance handle

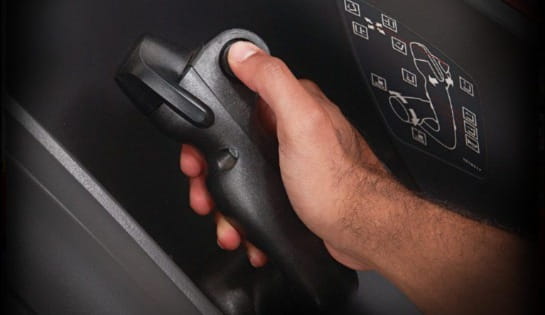

          Intuitive, Easy-to-Learn Controls
          Single-axis control handle provides simultaneous function with intuitive vehicle controls that are easy to learn for greater operator productivity.
        • high capacity reach truck, integrated display

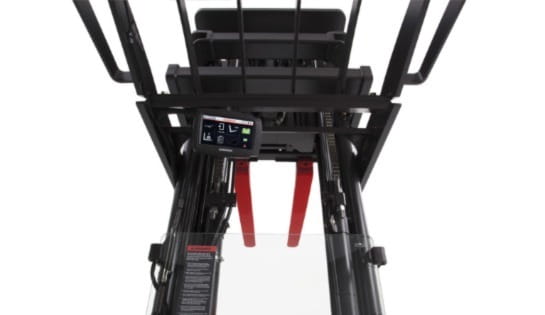

          Simple, Intuitive Operation
          A single 7" Multifunction Color Touchscreen Display consolidates vehicle systems into one monitor and makes truck information readily available and easily visible for greater visibility and usability.
          • Raymond Reach Trucks easy load wheel change

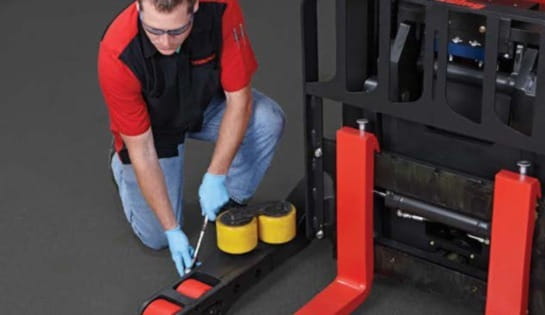

            Easier Maintenance
            Bolt-on wheel plates with floating articulation, allows for easy load-wheel replacement and improved ride quality.
          • OnBoard Active Maintenance
            Greater Durability and Reliability
            Baselegs made from ductile iron, which is 30% stronger and more durable than steel, enhances strength and durability for reliable load support.
          • Raymond reach trucks handle components
            Fewer Parts and Better Components
            Easy-to-remove control handle with only 35 parts —61% fewer parts than competing models—for less maintenance and lower costs.

            • Raymond Vantage Point Camera for High Rack in Narrow Aisle Applications

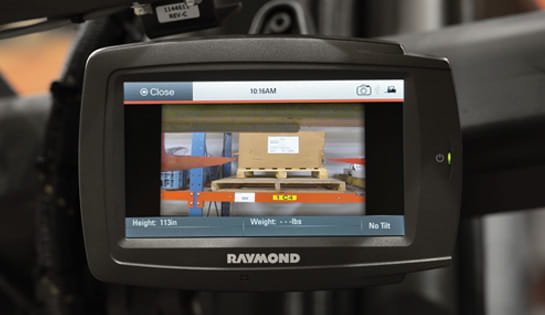

              Vantage Point Camera

              The color display monitor mounted in the operator’s compartment helps the operator to identify, place and retrieve pallets at greater heights.

            • Fork-Tip Laser Guide for Raymond Reach-Fork Trucks

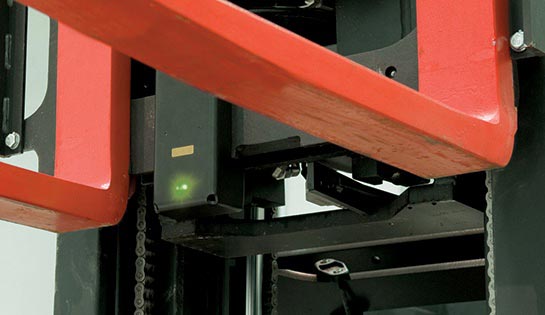

              Fork-tip Laser Guide

              Assists operators for faster loading and unloading of pallets at height by providing a clearly visible laser guide on the pallet.

            • Height Tilt Indicator for Raymond Reach Forklifts

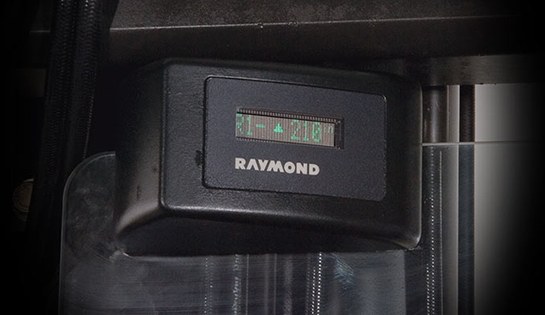

              Height-tilt Indicator

              Digital readout shows height of forks and condition of tilt. Ideal for lift heights above 200 inches.

            • thermakit, reach truck, cold storage

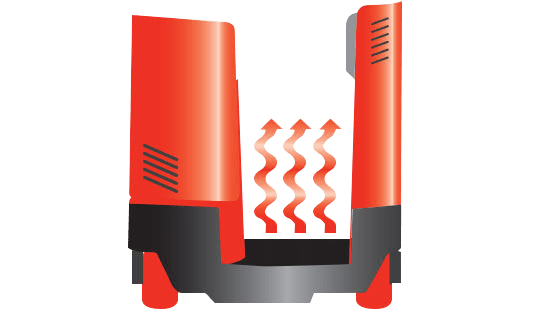

              ThermaKit System

              For cold storage warehouses, our padded, heated control handle and heated floor cushion keep your operators warm. By keeping hands and feet warmer for longer, ThermaKit enables improved productivity shift after shift.

            • Raymond Reach Truck operator compartment entry sensor

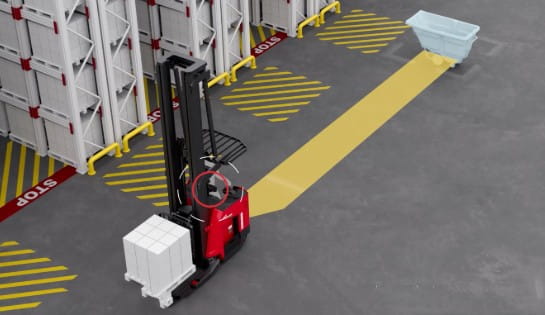

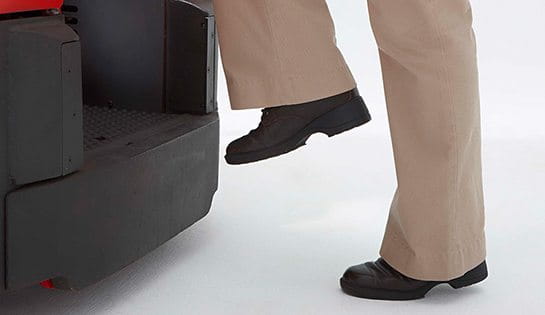

              Operator Compartment Sensor System

              Designed as a training aid to encourage proper operating procedures. Two light sensors span the entry to the operator compartment, sounding a tone and displaying a message on the operator's display when the sensors are blocked. If stationary, the truck will not travel if the light sensor is blocked.

            • Cold Storage

              Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions to test and prove our systems in extreme cycles of freezing and thawing.

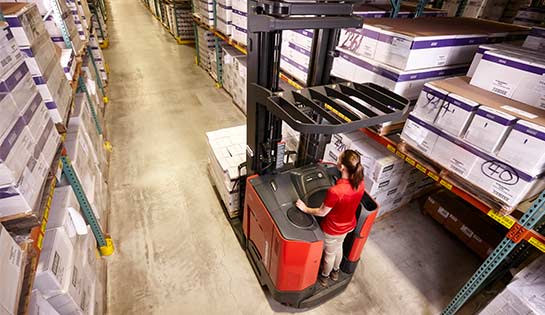

            • Narrow Aisle

              With more than 200 combinations of heights, features and capacities, Raymond Reach trucks for narrow aisle storage offer superior versatility and effective solutions to improve the utilization of your warehouse space.

            • Specialty Rack

              Raymond 7000 Series Reach-Fork trucks can interface with every industry-standard warehouse rack. If you have selective, double deep, drive-in/drive-thru, cantilever, pallet flow or push-back racks, Raymond has a solution that will help maximize your storage capacity and productivity.

            • UL EE Applications

              Raymond 7000 Series Reach-Fork trucks comply with Underwriters Laboratories (UL) 583. Raymond Type E and EE trucks are UL-tested and UL-certified and designed and manufactured to operate in classified locations as defined in the National Fire Protection Association's NFPA 505.

            • 7000 Series Reach-Fork Trucks

              Raymond 7000 Series Reach Trucks are designed with industry-leading lift, lower, acceleration and travel speeds – maximizing the number of pallets moved per hour. Whether your operators need to perform in high stacking applications, move from dock to stock areas or travel long distances in your warehouse, our reach trucks offer the right solution designed to keep your operator comfortable and operation moving.

            • Celebrating 65 Years of the Raymond Reach Truck

              Raymond pioneered narrow aisle with the invention of the first narrow aisle forklift in 1951. For 65 years, we’ve continuously innovated the reach forklift—from the introduction of AC technology into electric forklifts to the industry's first integrated operator display—to give our customers the best reach trucks in the industry.

            • Vantage Point Camera System

              With the Vantage Point option, a camera below the fork carriage delivers high-resolution images to a color monitor in the operator compartment. A clearly visible green reference line on the monitor shows the operator the position of the fork tips, enabling accurate retrieval.
