7700 Reach-Fork Truck

Sit/Stand Reach

Sit Down Reach Truck

  • Raymond Forklift Truck, Reach lift AC motor
    Raymond lift trucks are engineered for Eco-Performance

    ACR System

    Delivers reliable 24/7 performance; quiet, smooth and precise traction and lift; and more run time per battery charge. x
    ACR System
  • raymond forklift baselegs
    Raymond lift trucks provide stability for operator confidence

    Ductile Iron Baselegs

    Ductile iron is 30% stronger and more durable than steel, ensuring reliable load support and enhanced strength and durability. x
    Ductile Iron Baselegs
  • Raymond 7700 Sit Stand Reach Truck Open View Mast
    Raymond engineers productive lift trucks

    Open View Mast

    Operators can clearly see the baselegs, load and rack, giving way to precise control and a faster, more efficient operation. x
    Open View Mast
  • Reach Lift, Raymond Forklift A frame suspension
    Raymond lift trucks provide stability for operator confidence

    Load Stability at Height

    Our unique steered idler and inertial dampener work together to provide the operator confidence when handling loads at height. x
    Load Stability at Height
  • integrated display, telematics, reach truck
    Raymond engineers productive lift trucks

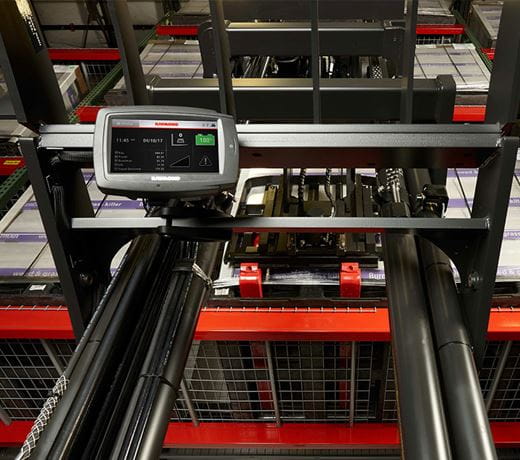

    Integrated Touchscreen Display

    A suite of technologies and telematics built right into the control system of the Reach Truck. x
    Integrated Touchscreen Display
  • reach truck
  • Raymond Forklift Truck, Reach lift AC motor
  • raymond forklift baselegs
  • Raymond 7700 Sit Stand Reach Truck Open View Mast
  • Reach Lift, Raymond Forklift A frame suspension
  • integrated display, telematics, reach truck
  • Overview
  • Specifications

All Day Comfort and Productivity

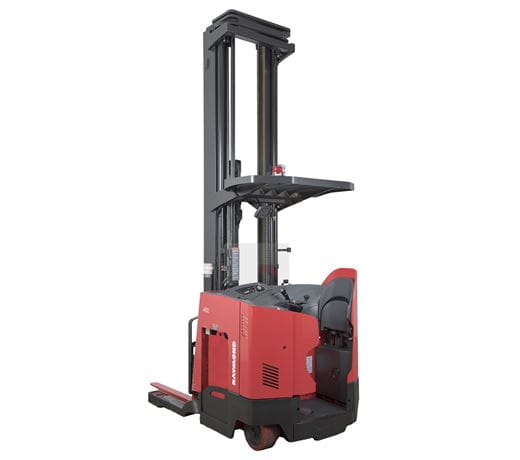

The Raymond 7700 Sit/Stand Reach-Fork truck enhances operator comfort in narrow aisle applications with long travel distances. The Sit Down Reach truck allows the operator to change positions for postural relief over the course of a shift. All packaged with the industry-leading performance of a Raymond Reach Forklift.

  • Battery: 36 volts
  • Capacity: 3,500 lbs. to 4,500 lbs.
  • Elevated Height: 444" maximum
  • Customized for Your Applications:: Hundreds of configurations available to meet your specific needs
  • Share:

Built to Perform

  • Raymond reach-fork truck

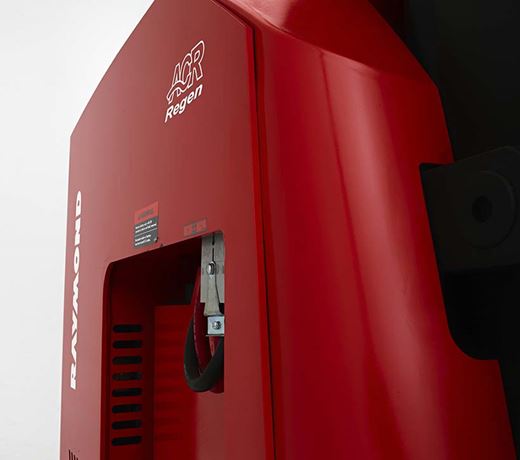

    Efficient by Design
    In third-party testing, Raymond 7000 Series Reach-Fork trucks used as much as 21% less energy than competing models, resulting in fewer battery changes, more uptime and more pallets moved at a lower cost.
  • Raymond Reach-Fork Trucks ACR System Drive Motor
    Performance Without Compromise
    The 7700 Sit Down Reach truck runs longer, harder and more economically. Raymond's exclusive ACR System delivers significantly more uptime, lower maintenance costs and helps you move more product faster.
  • Raymond forklift, reach truck with regenerative lowering
    Regenerative Lowering
    Raymond Reach-Fork trucks create power through regenerative lowering, which returns up to 10% of the used amps back to the battery when the truck is lowering a load, resulting in fewer battery changes and reduced downtime.
    • Raymond Reach-Fork Trucks ACR System Drive Motor
      ACR System™
      Delivers quick acceleration, smoother directional changes, longer battery shift life and an AC lift motor that enables more efficient use of power - lowering overall energy costs and providing operators with a smooth ride.
    • Raymond reach truck undercarriage

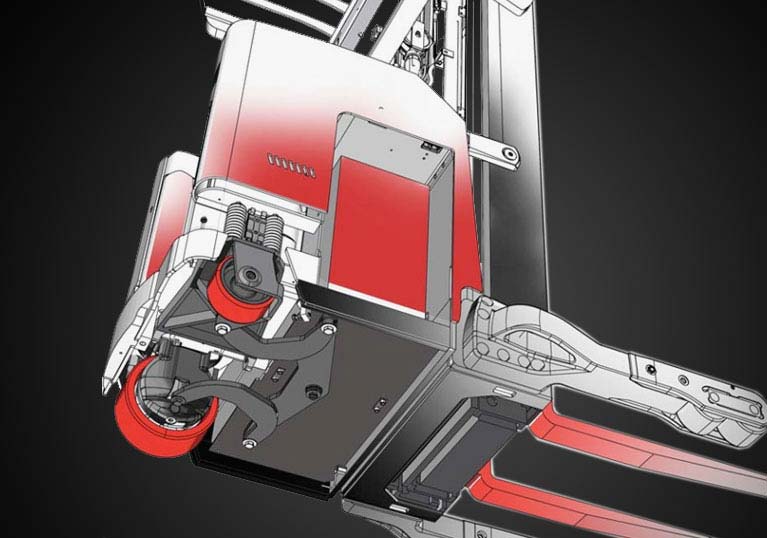

      Exclusive Steered Idler
      Prevents caster snap, reducing the time it takes an operator to back away from a rack with a load at high elevations - making the most of uptime.
    • reach lift, Raymond reach fork truck open view mast

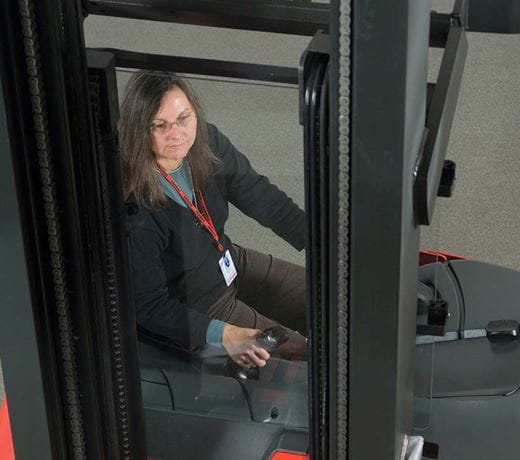

      Open View Mast
      Our patented open view mast is designed for unprecedented visibility and superior rack interface, enabling more efficient operation and resulting in less damage.
      • OnBoard Active Maintenance
        Reduced Maintenance Requirements
        Reduce downtime with advanced, on-board diagnostics that provide self-checking capabilities for simplified troubleshooting, and scheduled maintenance intervals of 500 hours — twice that of competitors.
      • Raymond reach trucks handle components
        Flex Circuit Technology
        Easy-to-remove control handle with only 35 parts - 61% fewer parts than competing models - for less maintenance and lower costs.
      • Raymond Reach Trucks easy load wheel change
        Bolt-on Wheel Plates
        With floating articulation, allows for easy load-wheel replacement and improved ride quality.
        • Raymond reach truck step height
          Low Entry-step Height
          Easier compartment entry helps operators avoid unnecessary climbing, minimizing fatigue over the course of a shift.
        • Raymond reach-fork sit stand reach truck open view mast

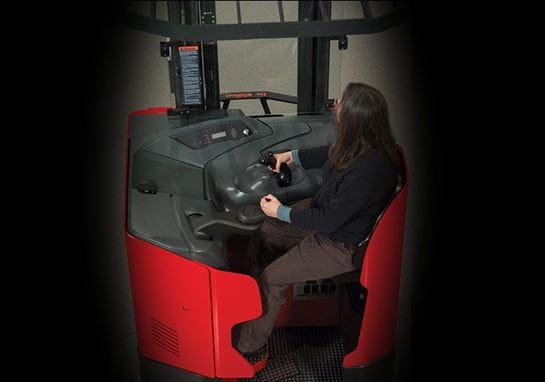

          Comfortable Compartment
          Designed for operator comfort, with wraparound, contoured padding, multiple lean points and cushioned floors.
        • Raymond reach truck sit stand reach truck

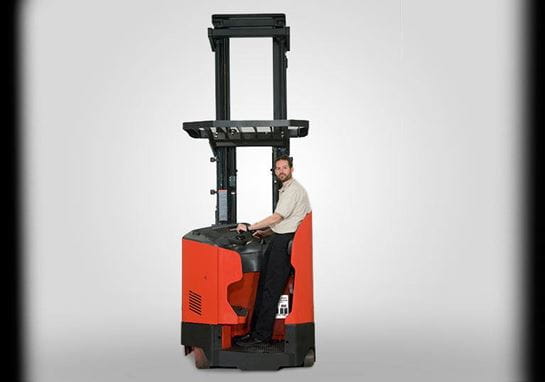

          Range of Operating Positions
          Designed with a flip-up seat to provide operators with the option to sit or stand, depending on the application.
          • Raymond reach-fork a-frame suspension
            A-frame Suspension
            Delivers smooth, precise handling with full-time traction and steering alignment.
          • Raymond Reach Truck inertial dampener
            Unique Inertial Dampener
            Shocks and sways are reduced before they reach the operator compartment - enhancing stability and operator performance.
          • Steered Idler Design
            Steered Idler Design
            Automatically aligns with the drive wheel to prevent caster snap and provides rock-solid stability at high elevations, increasing operator confidence.

            • Raymond Deep-Reach Truck Reach Scissor Mechanism

              Deep-Reach Capacity

              Raymond double deep reach truck configurations allow for double-deep pallet storage in the racks, saving two out of every five aisles for increased storage density.

            • Fork-Tip Laser Guide for Raymond Reach-Fork Trucks

              Fork-tip Laser Guide

              Assists operators for faster loading and unloading of pallets at height by providing a clearly visible laser guide on the pallet.

            • Height Tilt Indicator for Raymond Reach Forklifts

              Height Tilt Indicator

              Digital readout shows height of forks and condition of tilt. Ideal for lift heights above 200”

            • thermakit, reach truck, cold storage

              ThermaKit System

              For cold storage warehouses, our padded, heated control handle and heated floor cushion keep your operators warm. By keeping hands and feet warmer for longer, ThermaKit enables improved productivity shift after shift.

            • Raymond Vantage Point Camera for High Rack in Narrow Aisle Applications

              Vantage Point Camera

              The color display monitor mounted in the operator’s compartment helps the operator to identify, place and retrieve pallets at greater heights.

            • Raymond Reach Truck operator compartment entry sensor

              Operator Compartment Sensor System

              Designed as a training aid to encourage proper operating procedures. Two light sensors span the entry to the operator compartment, sounding a tone and displaying a message on the operator's display when the sensors are blocked. If stationary, the truck will not travel if the light sensor is blocked.

            • Cold Storage

              Refrigerated warehouses, blast freezers and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions to test and prove our systems in extreme cycles of freezing and thawing.

            • Narrow Aisle

              With more than 200 combinations of heights, features and capacities, Raymond reach trucks for narrow aisle storage offer superior versatility and effective solutions to improve the utilization of your warehouse space.

            • Specialty Rack

              The 7700 sit-down reach truck can interface with industry-standard warehouse rack. If you have selective, double deep, drive-in/drive-thru, cantilever, pallet flow or push-back racks, Raymond has a solution that will help maximize your storage capacity and productivity.

            • UL EE Applications

              The 7700 Sit/Stand Reach-Fork truck complies with Underwriters Laboratories (UL) 583. Raymond Type E and EE trucks are UL-tested and UL-certified and designed and manufactured to operate in classified locations as defined in the National Fire Protection Associations NFPA 505.

            • 7000 Series Reach-Fork Trucks

              Raymond 7000 Series Reach Trucks are designed with industry-leading lift, lower, acceleration and travel speeds – maximizing the number of pallets moved per hour. Whether your operators need to perform in high stacking applications, move from dock to stock areas or travel long distances in your warehouse, our reach trucks offer the right solution designed to keep your operator comfortable and operation moving.

            • Celebrating 65 Years of the Raymond Reach Truck

              Raymond pioneered narrow aisle with the invention of the first narrow aisle forklift in 1951. For 65 years, we’ve continuously innovated the reach forklift—from the introduction of AC technology into electric forklifts to the industry's first integrated operator display—to give our customers the best reach trucks in the industry.

            • Vantage Point Camera System

              With the Vantage Point option, a camera below the fork carriage delivers high-resolution images to a color monitor in the operator compartment. A clearly visible green reference line on the monitor shows the operator the position of the fork tips, enabling accurate retrieval.
