Extended Reach Forklift
Increase Storage Density
Deep-Reach forklift trucks save two out of five aisles versus single deep storage, allowing double-deep pallet storage in the racks for increased storage density. Raymond double deep reach forklifts are available with your choice of compartment configuration — Universal Stance, sidestance reach truck or sit-down reach truck.
- Battery: 24 and 36 volts
- Capacity: 3,200 lbs. maximum
- Elevated Height: 444" maximum
- Customized for Your Applications: Hundreds of configurations available to meet your specific needs
Fork-tip Laser Guide
Assists operators for faster loading and unloading of pallets at height by providing a clearly visible laser guide on the pallet.
Digital readout shows height of forks and condition of tilt. Ideal for lift heights above 200 inches.
Operator Compartment Sensor System
Designed as a training aid to encourage proper operating procedures. Two light sensors span the entry to the operator compartment, sounding a tone and displaying a message on the operator's display when the sensors are blocked. If stationary, the truck will not travel if the light sensor is blocked.

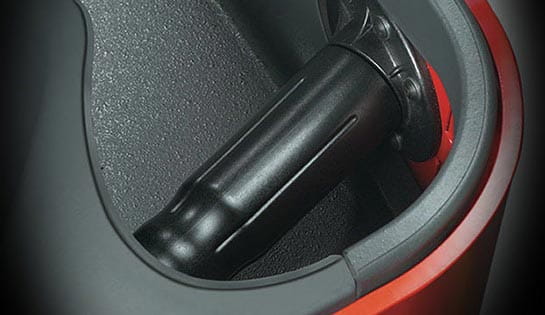

Secondary Control Handle
Allows for increased visibility for all tasks no matter the direction of travel. Optional with the Universal Stance configuration.
For cold storage warehouses, our padded, heated control handle and heated floor cushion keep your operators warm. By keeping hands and feet warmer for longer, ThermaKit enables improved productivity shift after shift.
Vantage Point Camera
The color display monitor mounted in the operator’s compartment helps the operator to identify, place and retrieve pallets at greater heights.
Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions to test and prove our systems in extreme cycles of freezing and thawing.

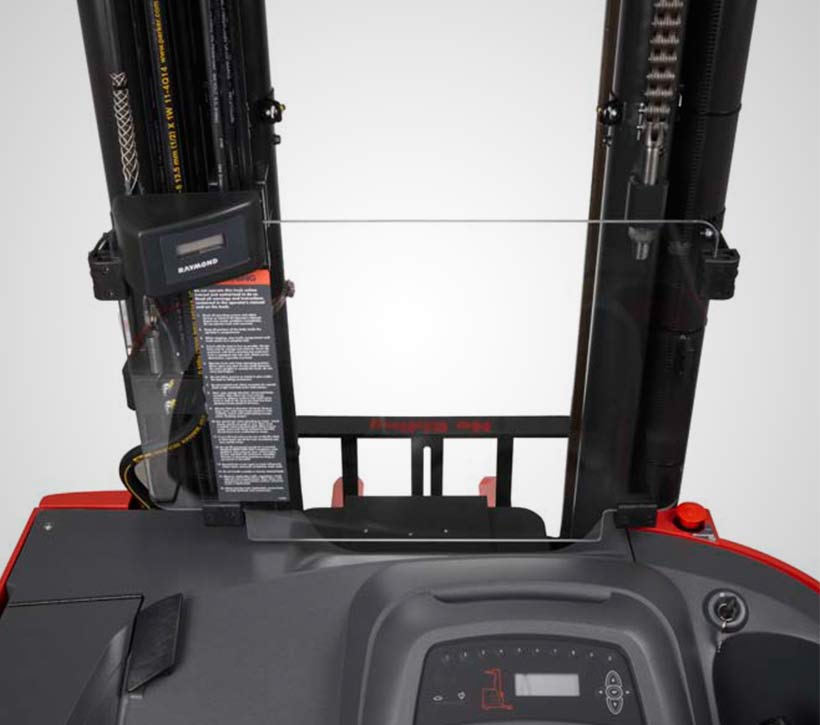

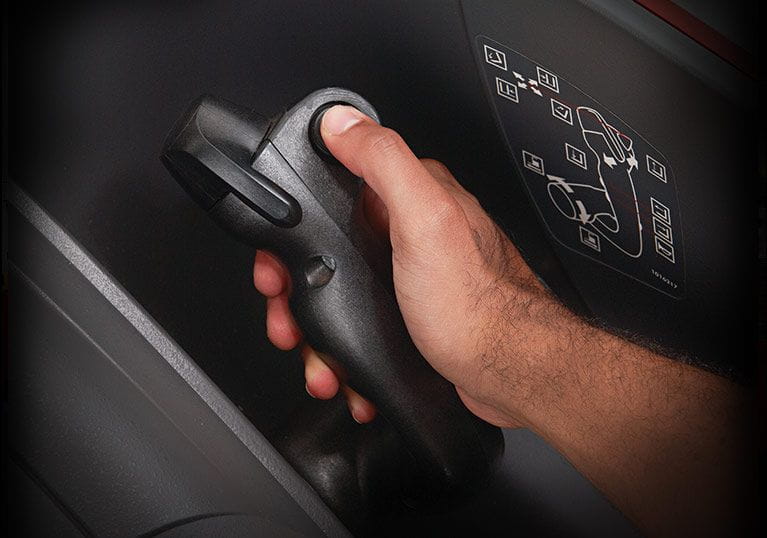

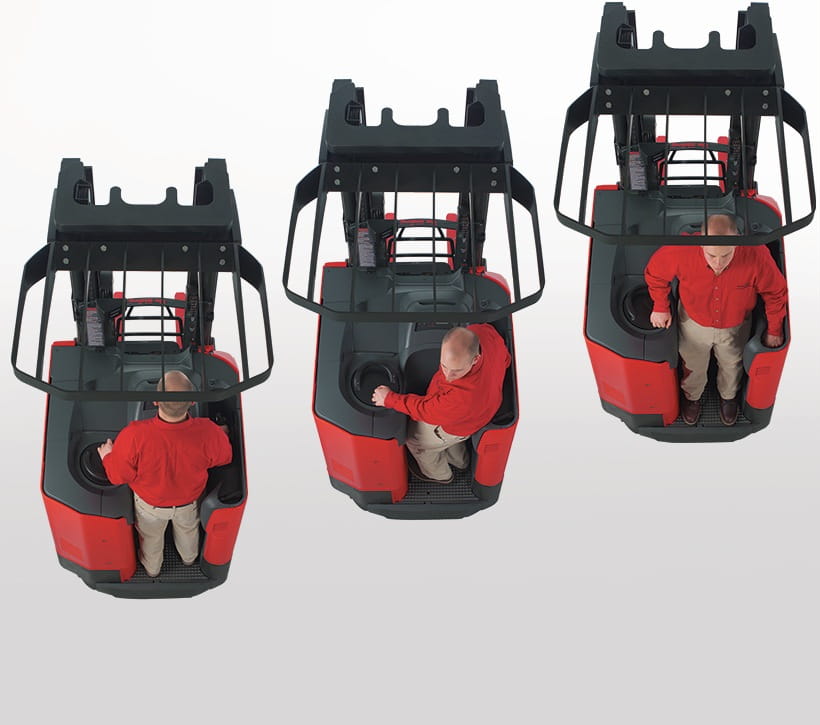

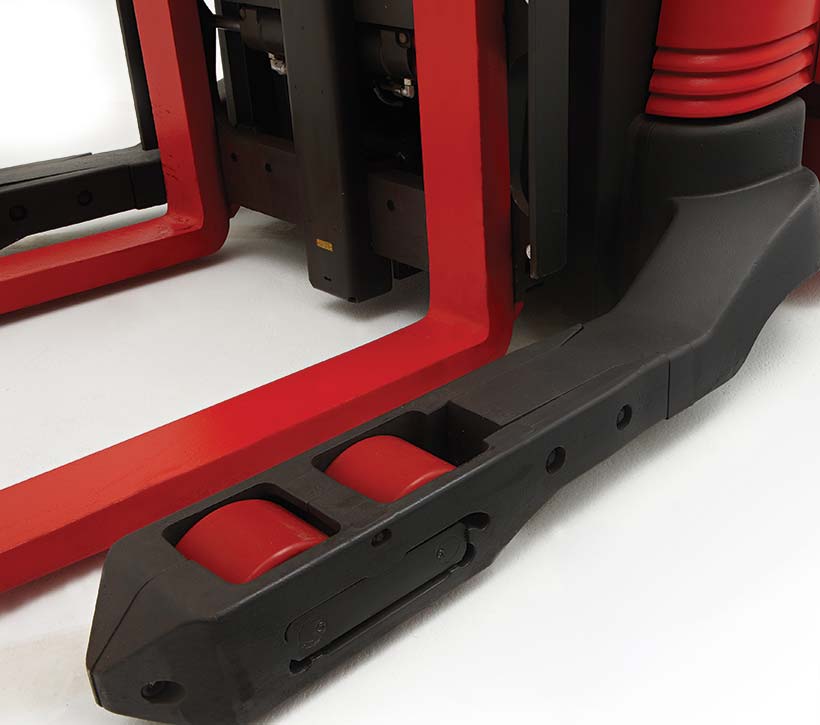

The Universal Stance configuration in combination with our exclusive open view mast make Raymond 7000 Series Deep-Reach trucks an ideal fit for high-lift applications. Raymond double deep reach trucks provide operators with a clear line of sight to the baselegs, load and rack. And our exclusive Universal Stance compartment allows for a variety of operating positions for enhanced comfort and productivity throughout a shift.
With more than 200 combinations of heights, features and capacities, Raymond Deep-Reach trucks for narrow aisle storage offer superior versatility and effective solutions to improve the utilization of your warehouse space.
Raymond Deep-Reach trucks are designed to interface with double deep racks to help maximize your selectivity, storage capacity and productivity.
UL EE Applications
Raymond Deep-Reach trucks comply with Underwriters Laboratories (UL) 583. Raymond Type E and EE trucks are UL-tested and UL-certified and designed and manufactured to operate in classified locations as defined in the National Fire Protection Association's NFPA 505.
7000 Series Reach-Fork Trucks
Raymond 7000 Series Reach Trucks are designed with industry-leading lift, lower, acceleration and travel speeds – maximizing the number of pallets moved per hour. Whether your operators need to perform in high stacking applications, move from dock to stock areas or travel long distances in your warehouse, our reach trucks offer the right solution designed to keep your operator comfortable and operation moving.

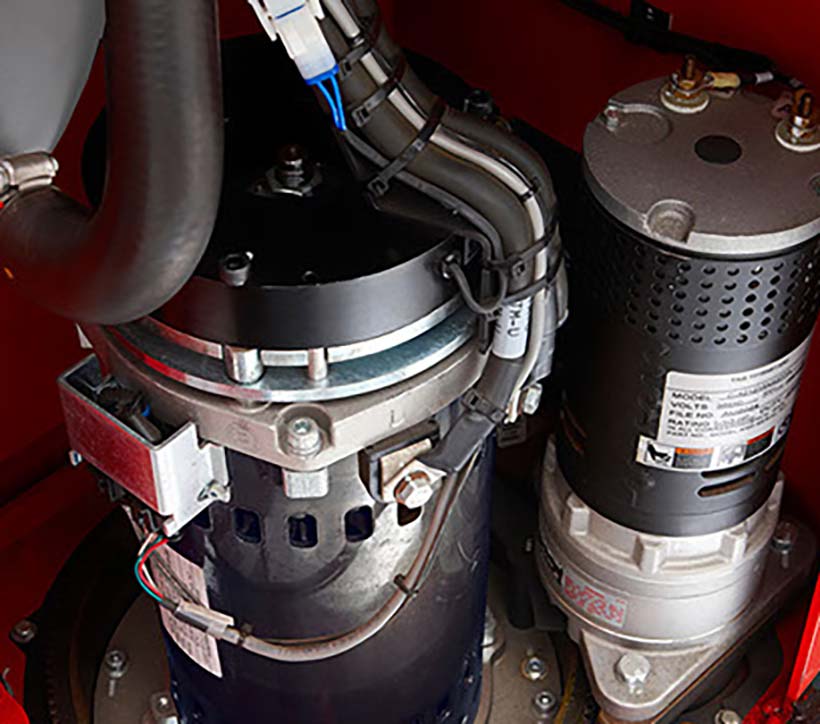

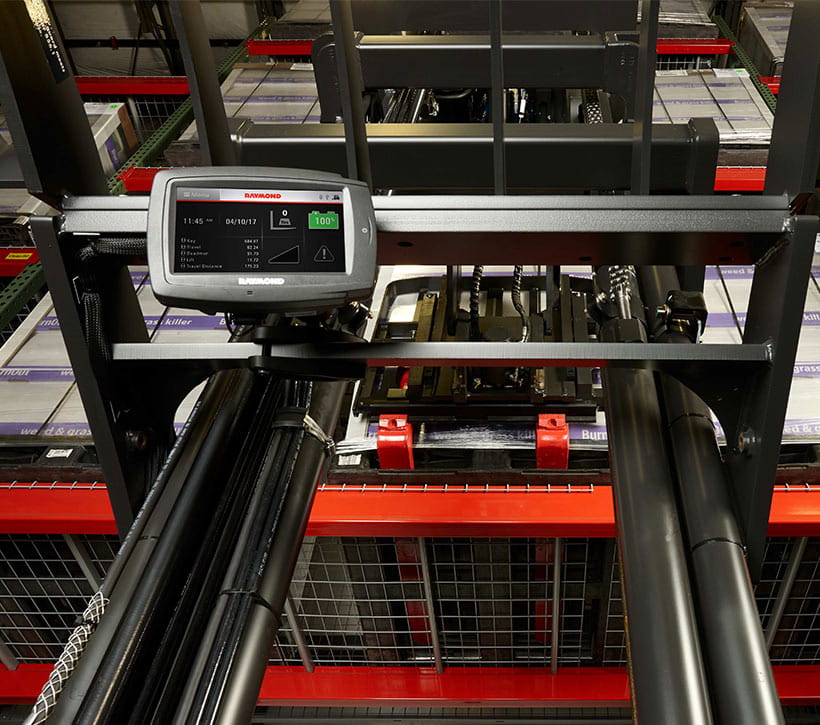

Raymond pioneered narrow aisle with the invention of the first narrow aisle forklift in 1951. For 65 years, we’ve continuously innovated the reach forklift—from the introduction of AC technology into electric forklifts to the industry's first integrated operator display—to give our customers the best reach trucks in the industry.
Vantage Point Camera System
With the Vantage Point option, a camera below the fork carriage delivers high-resolution images to a color monitor in the operator compartment. A clearly visible green reference line on the monitor shows the operator the position of the fork tips, enabling accurate retrieval.
