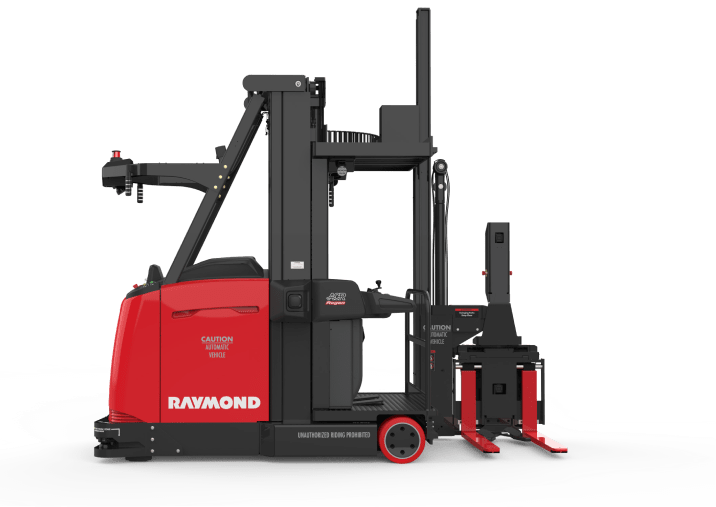

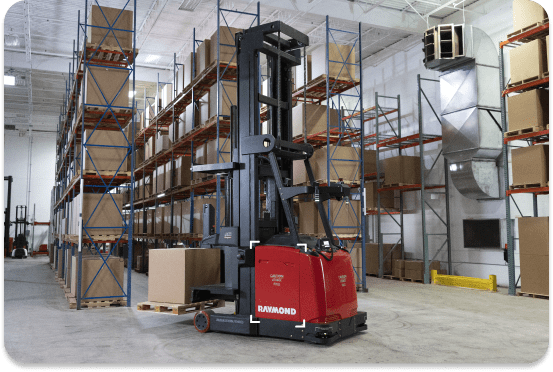

Raymond 3960/3970 Automated Swing-Reach turret trucks provide fully automated high-level pallet handling with faster lift speeds and greater heights. With the ability to move within and between aisles, the Automated Swing-Reach allows you to maximize operational uptime with 24/7 pallet movement, vertical storage capacity, and labor efficiency.
Start Your Consultation
-
Ambient temperatures down to 40°F, non-condensing
Battery Compartment: 21” (3960), 24" (3970)
Battery: 48 volt
-
Elevated Height: 394” plus (3960), 514" plus (3970)
VNA operations with ceilings up to 50 feet
Capacity: 3,000 lbs
Operations using a WMS/WCS
-
System Components
Automated Swing-Reach
Intelliguide wire guidance and spot navigation capabilities
Object and Pallet Detection SystemsMulti-Mode Navigation Hardware
Wire guidance in very narrow aislesLiDAR natural navigation with supplemental reflectors outside aisles
Navigational Software
Controls travel from point A to point B
Seamlessly switches between different navigation modes/systemsProvides fleet status and traffic management
Wire Guidance, Intelliguide, and LIDAR
Increase truck speed, storage capacity and performance without the need for adjustment. Raymond Swing-Reach trucks engage the guide wire quickly and easily, and the no-tune intelliguide system offers excellent tracking and stability. Travel outside or between aisles is afforded by precise LIDAR navigation.
Middleware
Transfers information between the navigational software and your WMSHuman Machine Interface (HMI)
Allows an operator to initiate truck operation and monitor its status, including battery state-of-charge and locationRegenerative Lowering
Creates power by returning energy to the battery when the truck is lowering its load, resulting in fewer battery changes and reduced downtimeLoad Control

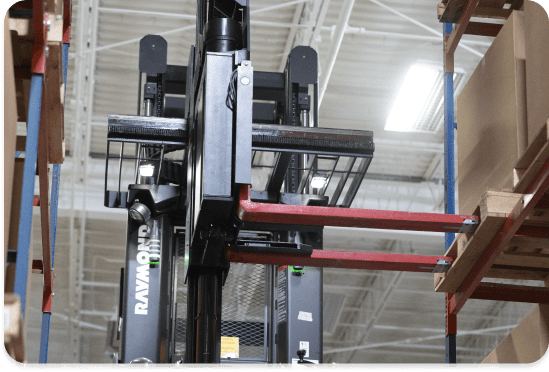

Precise vehicle and fork controls ensure the 3960 Automated Swing-Reach moves product with accuracy, minimizing the chance for product damage and human error
