Transtacker

Swing-Reach

Heavy-Duty Turret Truck

  • Raymond Courier Transtacker TRT
  • Raymond Transtacker TRT Turret Truck
    Raymond lift trucks are engineered for Eco-Performance

    Built-in DC Charger

    Operates on AC power in the aisle, which recharges the DC motor for power required outside the aisle. x
    Built-in DC Charger
  • Raymond Transtacker TRT Turret Truck in Aisle
    Raymond lift trucks provide versatile material handling solutions

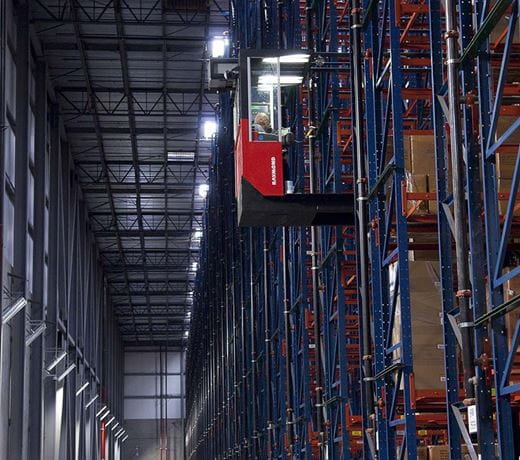

    Dual Purpose Design

    Combines high-density unit load handling with operator-up order picking versatility. x
    Dual Purpose Design

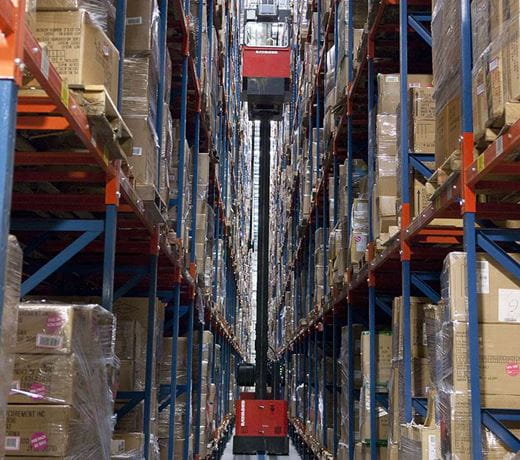

  • Raymond Transtacker Regenerative Braking
    Raymond lift trucks are designed for ease of maintenance

    Regenerative Braking

    Reduces motor heat and extends motor brush life, requiring less maintenance and lower overall costs. x
    Regenerative Braking

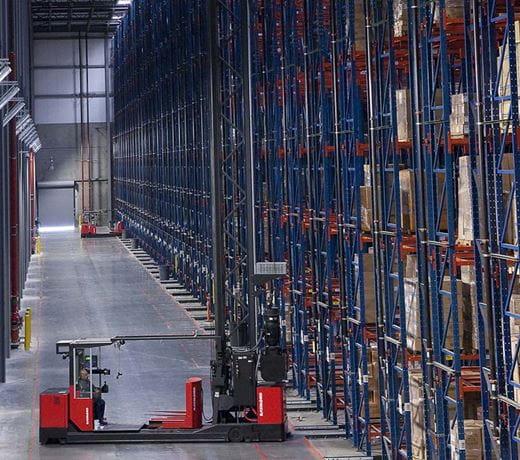

  • Raymond Transtacker Smooth Speed Control
    Raymond engineers productive lift trucks

    Smooth Speed Control

    Transistorized speed control provides smooth, variable control both inside and outside of the aisle. x
    Smooth Speed Control
  • Raymond Transtacker TRT Swing-Reach Truck Operator
    Raymond ergonomic lift trucks

    Comfortable Compartment

    Designed with comfort features to enhance operator performance and productivity. x
    Comfortable Compartment

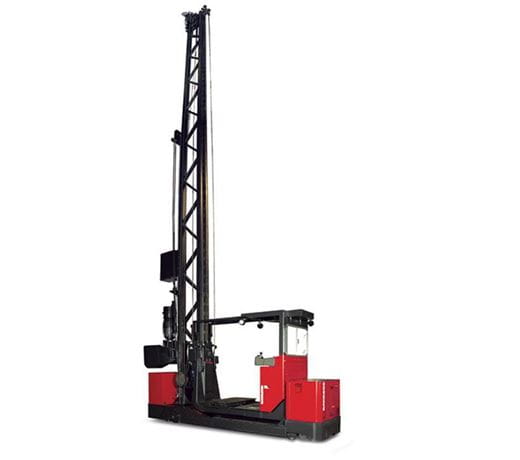

  • Raymond Courier Transtacker TRT
  • Raymond Transtacker TRT Turret Truck
  • Raymond Transtacker TRT Turret Truck in Aisle
  • Raymond Transtacker Regenerative Braking
  • Raymond Transtacker Smooth Speed Control
  • Raymond Transtacker TRT Swing-Reach Truck Operator
  • Overview
  • Specifications

Ultimate Storage Density

Maximize valuable space with narrower aisles and higher heights with the Raymond Transtacker. This heavy-duty, high density swing-reach turret truck combines case picking and unit load handling in aisles as narrow as 54 inches at heights up to 59 feet, for the ultimate very narrow aisle warehouse storage solution.
Inquire
  • Battery: 36 volt
  • Capacity: 4,000 lbs
  • Elevated Height: 700" maximum
  • Power: AC/DC Power allows 24/7/365 operation
  • Aisle Width: 54" minimum
  • Share:

Built to Perform

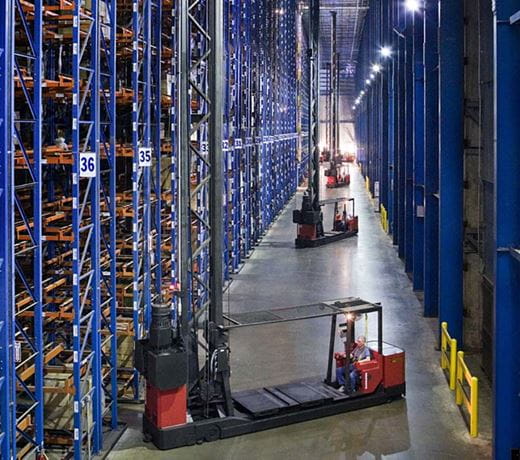

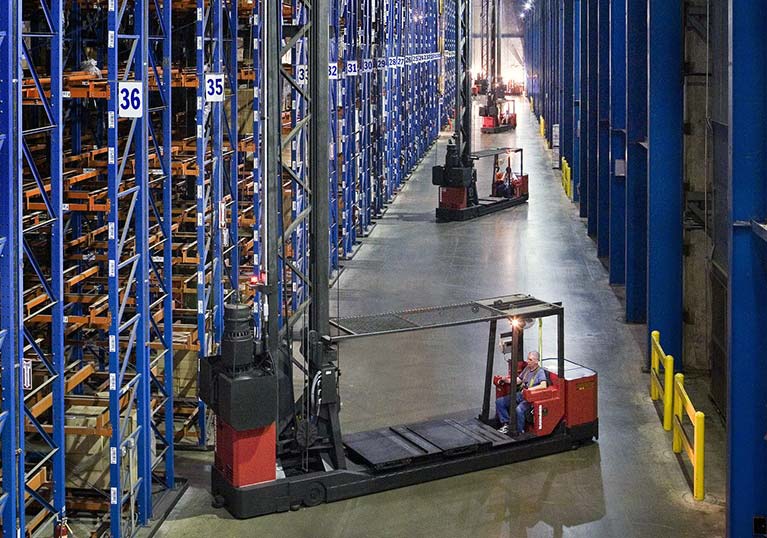

  • Raymond Transtacker Maximum Cube Utilization 24/7 Operation
    24/7/365 Operation
    Dual AC/DC power supply with AC power in the aisle guided by floor and ceiling mounted guide tracks while automatically recharging the DC battery for operation outside the storage aisle, allowing for continuous operation.

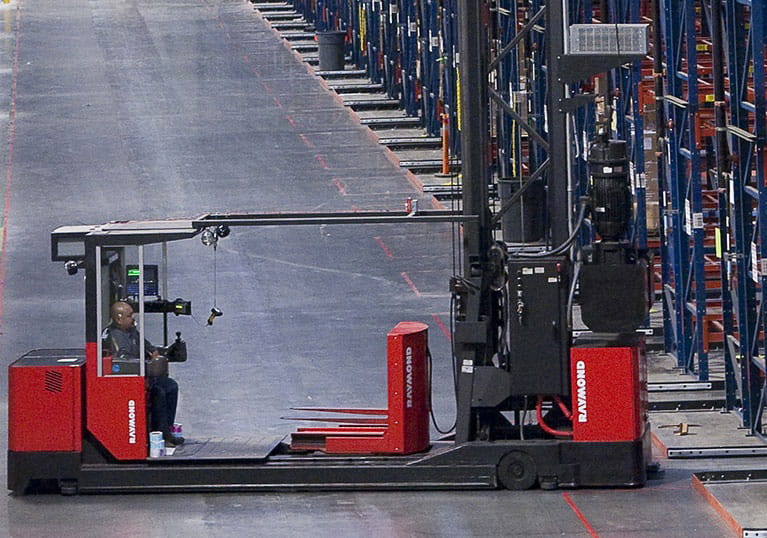

  • Raymond Transtacker operating outside of aisle on DC power
    Regenerative Braking
    Provides electromotive braking reducing motor heat and extending motor brush life.

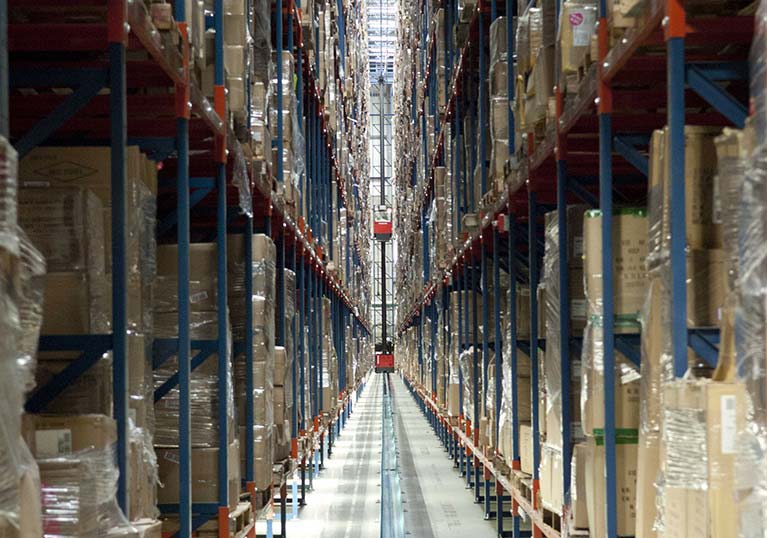

    • Raymond Transtacker Maximizes Warehouse Storage Density
      Ultimate Storage Density
      The heavy duty Transtacker combines case picking with unit load handling in a single truck, and with its capacity of up to 4,000 pounds, elevated height of 59 feet, and the ability to operate in aisles as narrow as 54 inches, it is ideal for high density applications with a need for maximum selectivity.

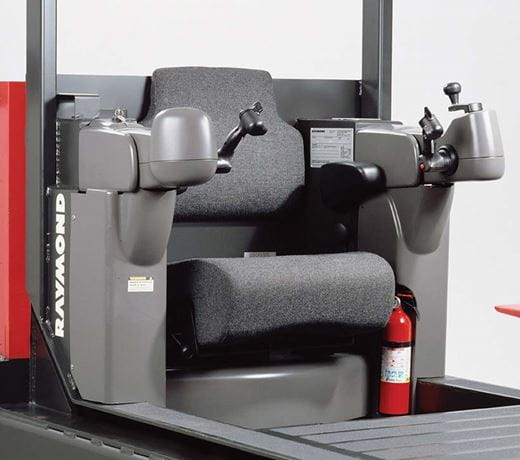

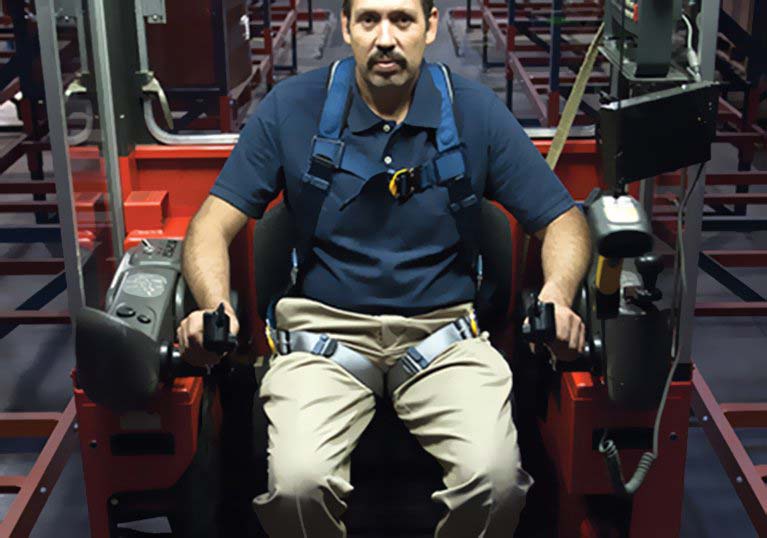

    • Raymond Transtacker Operator in Compartment
      Various Operating Positions
      From the platform allow effortless control whether standing or sitting facing forks first.

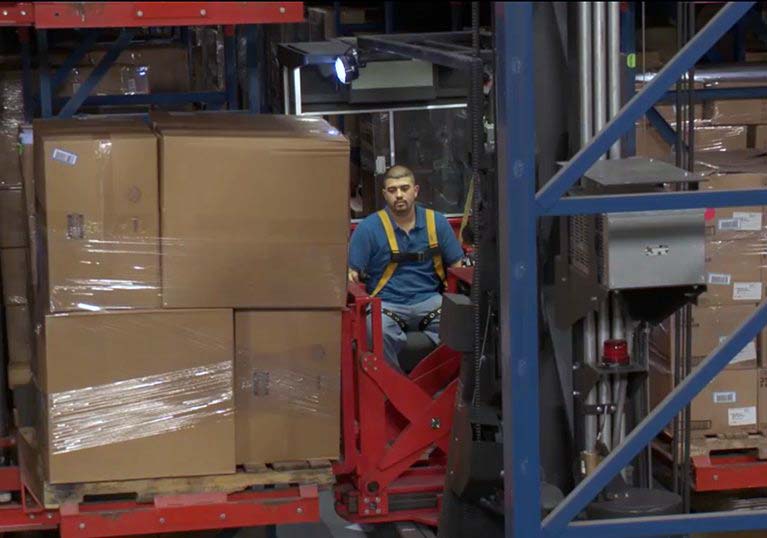

    • Raymond Transtacker Programmable Performance Feature
      AC/DC Power Supply
      Provides fast and easy aisle-changing capabilities with no mechanical aisle-changing devices.
      • Raymond Transtacker Fine Fork Positioning

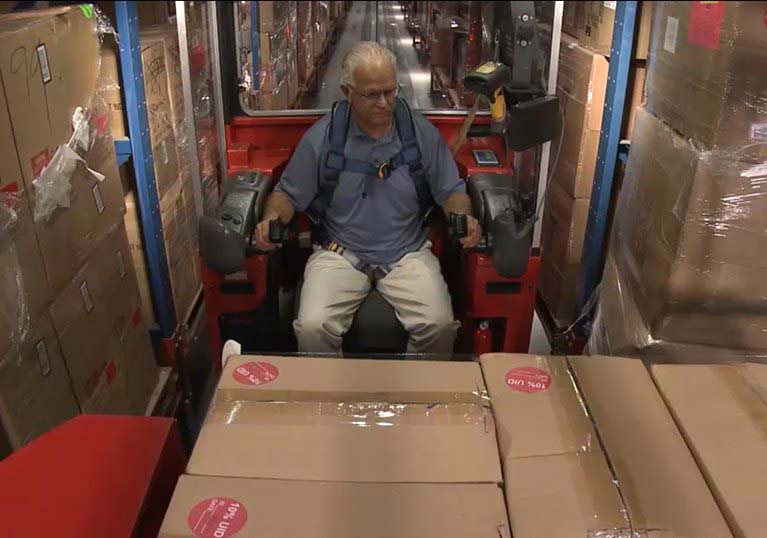

        Fine Positioning Controls
        Fine positioning controls for the lift, travel and load handling functions provides better load control for operator efficiency, while the pallet centering feature aligns pallet in the proper position to maintain constant travel clearance.

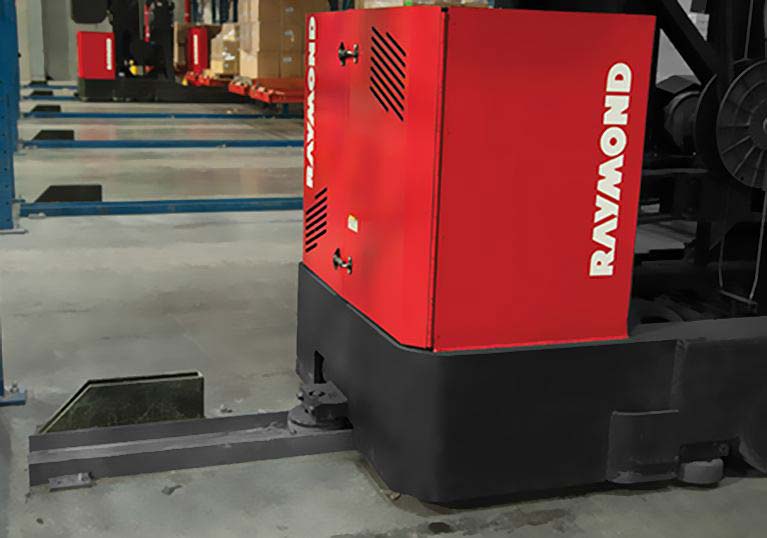

      • Raymond Transtacker with Unique Wheel Arrangement

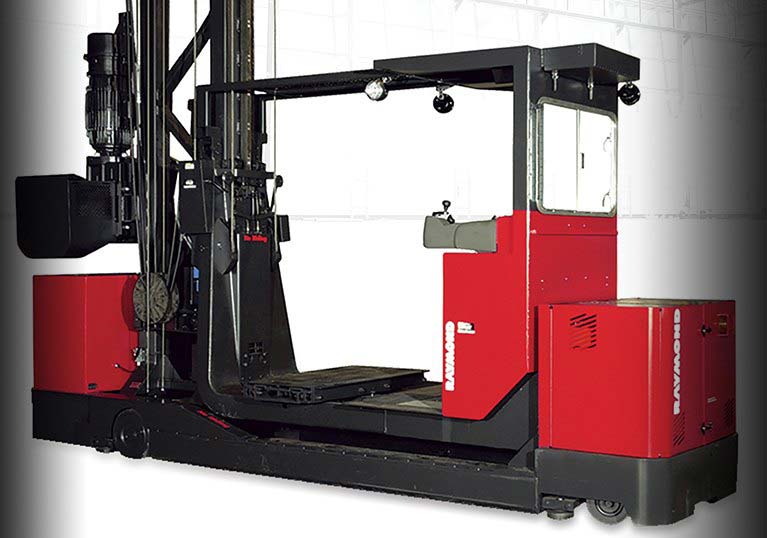

        Unique Wheel Arrangement
        The Transtacker's center wheels work in the aisle for mast support while outside wheels provide support when changing aisles to provide optimum wheel loading while working in the aisle.

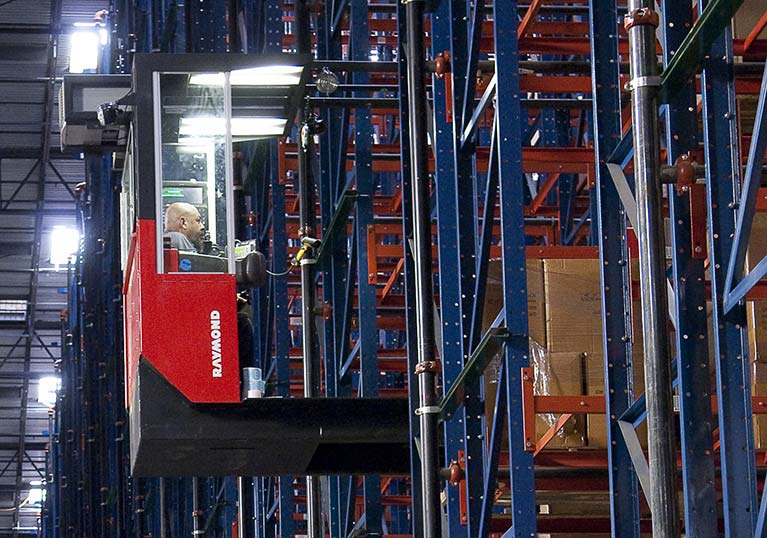

        • Raymond Transtacker Operator Up Turret Truck
          Dynamic Hoist Braking
          Slows hoist motion to a smooth stop prior to engaging the mechanical brake, minimizing hoist brake wear and maximizing operator comfort.
        • Raymond Transtacker Compartment Ligihting
          Operator's Compartment
          Ergonomically designed with adjustable armrests and controls for convenient operation from seated and standing positions.
        • Raymond Transtacker Operator Display
          Intuitive Controls
          The handles and operator display allow for easy and efficient control of critical truck functions.
          • Raymond Transtacker AC Powered Turret Truck
            SRT Electric Lift Design
            No hydraulic components and longer service life. It's like getting two trucks in one.
          • Raymond Transtacker Heavy-Duty High Capacity Turret Truck
            Reduced Damage
            Steel bumpers minimize the chance of damage to the truck from debris.
          • Raymond Transtacker Heavy-Duty High Capacity Turret Truck
            Automatic Steer Lock
            In guided aisles, the automatic steer lock feature prevents damage to the drive unit from incorrect alignment.

            Transtacker

            • Raymond Transtacker TRT Turret truck with Orderpick Platform Configuration

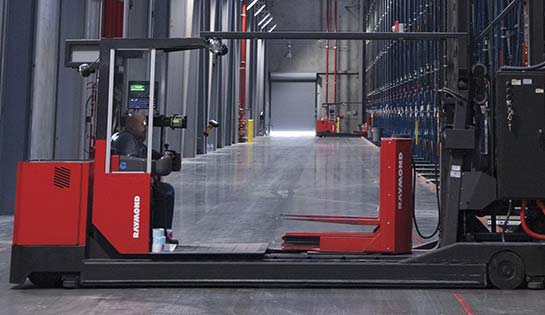

              Order Pick Platform

              At the operator’s compartment helps to make storing pallets, picking cases or transporting loads effortless by allowing the operator to stand facing tractor first or forks first; or sit facing forks first.

            • Raymond Transtacker Turret Truck

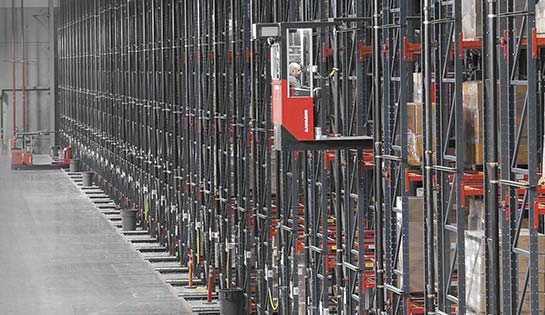

              Various Compartment Configurations

              Available with various operator compartment configurations such as the 3-sided cab (shown), or the fully enclosed compartment option which is equipped with climate control and can reduce or eliminate the need for lighting, heating and air-conditioning costs in the storage area.

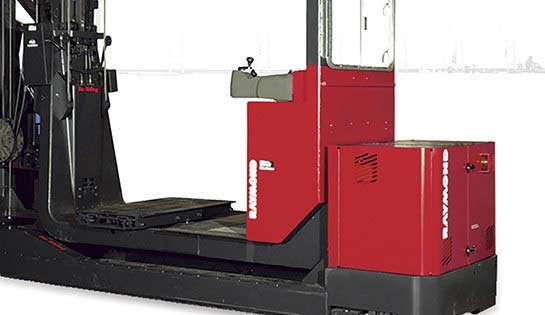

            • Raymond Transtacker truck with optional mini shuttle

              Mini Shuttles

              When handling multiple loads in applications such as stacker type racks, a set of mini shuttles engages loads on pallets with no bottom crossboards, or from underneath the pallet/skid or load itself. With mini shuttles, the load does not need to be rotated, allowing for faster load handling, and, in some cases, a narrower aisle.

            • Raymond Cold Storage Equipped Lift Trucks

              Cold Storage Conditioning

              Where there are requirements for a truck to operate outside the normal warehouse temperature range of 51°F to 110°F, such as in freezers, unheated warehouses, and refrigerated warehouses, the Transtacker Swing-Reach truck is available with cold storage conditioning to help maintain good truck performance.

              Cold Storage

              Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions; testing and proving our systems in extreme cycles of freezing and thawing. Raymond Transtacker Turret trucks can be equipped with cold storage conditioning and heated cab options to enhance operator comfort in cold storage warehouses.

              Orderpicking

              Boost throughput and pick rates with reliable, high performance Raymond Transtacker trucks. Lifting greater capacities to higher heights means greater order picking productivity for your operators. And, we can customize our vast selection of swing-reach trucks, including lift heights and performance packages to meet very narrow aisle needs and order picking requirements.

              Very Narrow Aisle

              With over 200 combinations of heights, features and capacities, Raymond's family of very narrow aisle forklifts and swing-reach trucks offer superior versatility and effective solutions, each improving the utilization of your warehouse space.

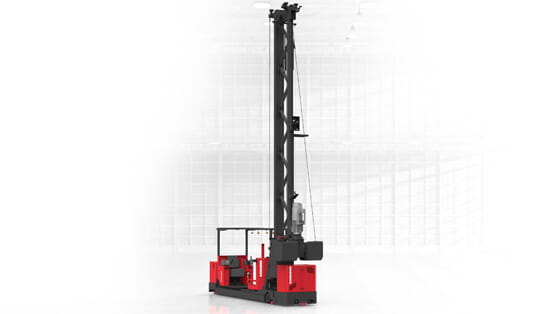

            • Raymond Transtacker Very Narrow Aisle Truck

              The Raymond Transtacker can deliver incredible reach and power in aisles as narrow as 54 inches. This unique turret truck operates on AC power in the aisle, and is guided by a floor to ceiling mounted guide rack. Outside the aisle, the TRT Transtacker operates as a DC battery powered vehicle. While the Transtacker operates on AC power, the DC battery automatically recharges.

            • Raymond's intelliguide Wire Guidance System

              Raymond's intelliguide™ is a proven, reliable system for customers who are looking to maintain or improve profitability in their warehouse operations through better management of space, equipment, and people. Raymond's patented intelliguide system provides no-tune wire guidance with excellent tracking and stability for very narrow aisle forklifts.
