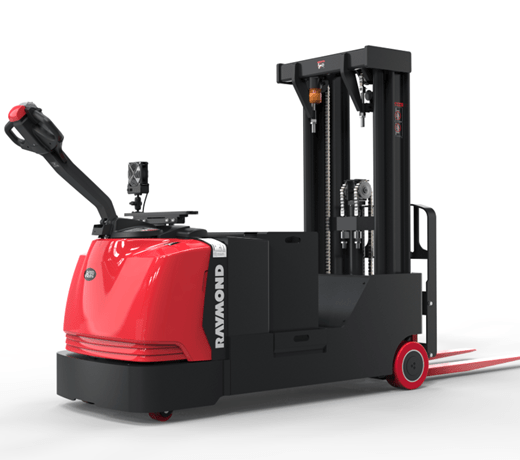

6510 Counterbalanced Stacker Walkie Pallet Stacker
-
-
Handling Features
Standard load-sensing torsion bar suspension simplifies handling during manual steering.Handling Features -
Lift/Lower Controls
Ergonomic handle provides proportional lift/lower controls for more precise load handling and reduced rack damage.Lift/Lower Controls -
Efficient AC Traction
Accelerate, decelerate, and change directions smoothly for more responsive control.Efficient AC Traction -
Large Load Wheels
Navigate dock plates with ease for a smoother ride and more efficient operation.Large Load Wheels -
Programmable Performance
Fully programmable speed and acceleration allow you to customize performance to the operator and application.Programmable Performance
Move Loads Up to 4000lbs. More Comfortably and Confidently
Combining the capabilities of a heavy-duty stacker and a counterbalanced forklift, Raymond 6510 Walkie Counterbalanced Stackers provide versatile, efficient, reliable pallet capabilities. the trucks are ideal for working with racks and in trailers or boxcars and feature heavy-duty construction and on-board diagnostics for easier maintenance and a lower cost of ownership.
- Battery: 24 volt
- Capacity: 2,000 lbs, 3,000 lbs and 4,000 lbs
- Elevated Height: 189" maximum
- Loaded Travel Speed: 3.5 mph
- Unloaded Travel Speed: 3.5 mph
Options
-
Optional Power Steering
Ideal for more demanding applications, power steering reduces steer effort to deliver easier, more precise maneuverability—enhancing operator comfort throughout the shift. Speed-sensitive steering provides additional assist at low speeds, offering greater control when precision is most critical. -
Sideshift
The sideshift function provides sideways movement of the carriage permitting a load to be picked up or put away even if it is not perfectly aligned with the truck. -
Warning Lights
The 6510 Walkie Counterbalanced Stacker is designed to provide excellent visibility and is equipped with a horn as standard equipment. However, environments with high levels of ambient noise may make it difficult to hear the horn when sounded. The warning light option may assist in making other workers aware of the 6510 Stacker truck in use.
Applications
-
Bulk Storage
Raymond 6510 Walkie Counterbalanced Stacker trucks are designed to efficiently maneuver through bulk storage areas. With various heights, capacities, and features, as well as a great range of operational applications, Raymond 6510 Stackers can meet your bulk storage needs, no matter how specialized.
-
Cold Storage
Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test area to replicate the harshest conditions, testing and proving our systems in extreme cycles of freezing and thawing.
-
Palletless Handling
Whether you’re moving carpeting, steel, or other palletless loads, Raymond 6510 Walkie Counterbalanced Stackers can help you maximize space utilization, decrease damage to inventory, and increase productivity.
-
Truck Loading and Unloading
Ideal for the breakdown of pallets removed from trailers or boxcars, long runs to P&D stations, or a combination of both, Raymond 6510 Walkie Counterbalanced Stackers can help improve the flexibility and productivity of your dock operation.
-
UL EE
Raymond 6510 Walkie Counterbalanced Stackers comply with Underwriters Laboratories (UL) 583, and are designed and manufactured to operate in classified locations as defined in NFPA 505. Type E and EE products are tested and certified by Underwriters Laboratories (UL).
