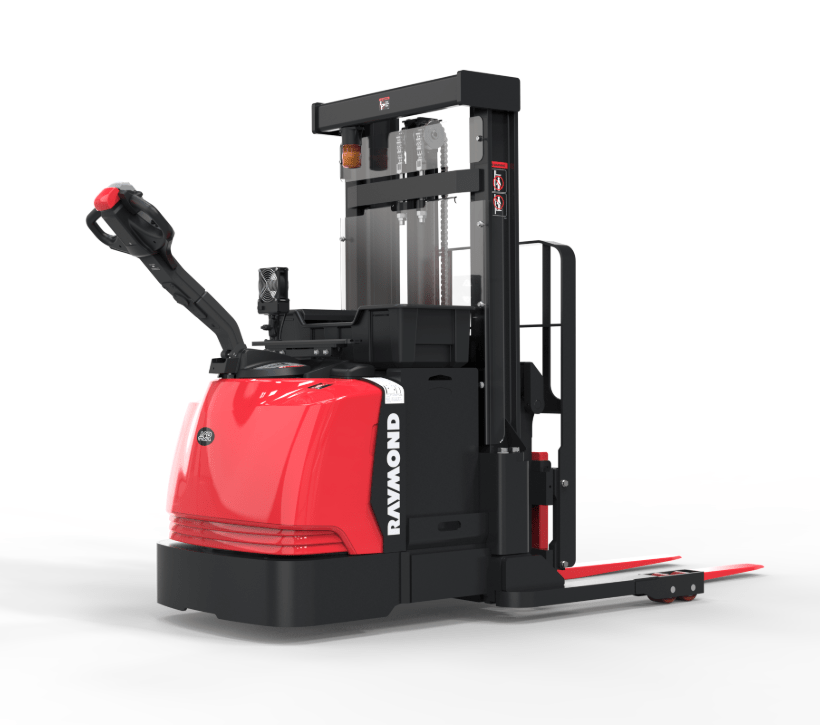

6410 Walkie Reach Stacker Pallet Stacker Truck

  • Raymond 6410 Stacker
    Raymond durable lift trucks

    Fixed Baselegs

    Sturdy, fixed baselegs provide added stability to help handle heavier loads.
    Fixed Baselegs
  • Raymond 6410 Stacker
    Raymond durable lift trucks

    Heavy-Duty Construction

    Rugged design and modular components offer easier maintenance and a lower cost of ownership.
    Heavy-Duty Construction
  • Raymond 6410 Stacker
    Raymond engineers productive lift trucks

    Lift/Lower Controls

    Ergonomic handle provides proportional lift/lower controls for more precise load handling and reduced rack damage.
    Lift/Lower Controls
  • Raymond 6410 Stacker
    Raymond lift trucks are designed for ease of maintenance

    Onboard Diagnostics

    Simplify troubleshooting and enhance uptime with fully integrated self-checking capabilities.
    Onboard Diagnostics
  • Raymond 6410 Stacker
    Raymond engineers productive lift trucks

    Efficient AC Traction

    Accelerate, decelerate, and change directions smoothly for more responsive control.
    Efficient AC Traction
  • Raymond 6410 Stacker
    Raymond lift trucks provide maneuverability

    Click2Creep Functionality

    Operate the truck with the handle tucked tightly to the tractor for even more precise handling and pinwheeling capability.
    Click2Creep Functionality
  • Raymond 6410 Stacker
    Raymond lift trucks provide versatile material handling solutions

    Multipurpose Capabilities

    High capacity and high precision make it easier to handle everything from loading and unloading trailers to staging and dock-to-stock applications
    Multipurpose Capabilities

Optimize Use of Your Trucks and Vertical Storage Space

Ideal for retail storage areas, weight-restricted elevators and floors, and other confined or congested spaces, the Raymond 6410 Walkie Reach Stacker offers exceptional flexibility, maneuverability, and productivity. Whether you’re looking to enhance efficiency, reduce maintenance costs, or perform more tasks with a single truck, the Raymond 6410 Walkie Reach Stacker offers a durable, reliable way to move pallets more quickly, easily, and affordably.

Add to Quote Inquire
  • Battery: 24 volt
  • Capacity: 3,000 lbs
  • Elevated Height: 189" maximum
  • Loaded Travel Speed: 3.5 mph
  • Unloaded Travel Speed: 3.5 mph

Options

  • Optional Power Steering

    Ideal for more demanding applications, power steering reduces steer effort to deliver easier, more precise maneuverability—enhancing operator comfort throughout the shift. Speed-sensitive steering provides additional assist at low speeds, offering greater control when precision is most critical.
  • Sideshift

    The sideshift function provides sideways movement of the carriage permitting a load to be picked up or put away even if it is not perfectly aligned with the truck.
  • Warning Lights

    The 6410 Walkie Reach Stacker is designed to provide excellent visibility and is equipped with a horn as standard equipment. However, environments with high levels of ambient noise may make it difficult to hear the horn when sounded. The warning light option may assist in making other workers aware of the 6410 Stacker truck in use.

Applications

Cold Storage

Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test area to replicate the harshest conditions, testing and proving our systems in extreme cycles of freezing and thawing.

Narrow Aisle

With multiple combinations of heights, features, and capacities, Raymond 6410 Walkie Reach Stackers provide narrow aisle storage facilities with superior versatility to improve the utilization of warehouse space.

Palletless Handling

Whether you’re moving carpeting, steel, or other palletless loads, Raymond 6410 Walkie Reach Stackers can help you maximize space utilization, decrease damage to inventory, and increase productivity.

UL EE

Raymond 6410 Walkie Reach Stackers comply with Underwriters Laboratories (UL) 583, and are designed and manufactured to operate in classified locations as defined in NFPA 505. Type E and EE products are tested and certified by Underwriters Laboratories (UL).
