End Rider Pallet Jack

Electric Pallet Jack

  • Raymond 8910 End Rider Pallet Truck, operator, truck display
    Raymond ergonomic lift trucks

    Operator Compartment

    Accommodates a wider range of operators.
    Operator Compartment

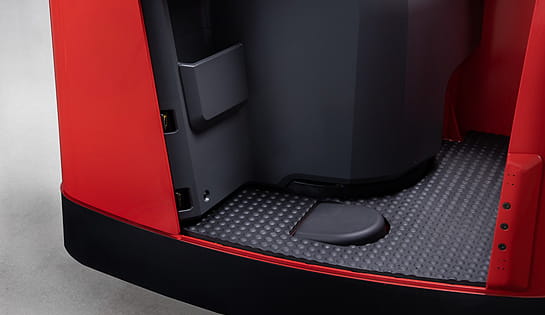

  • Raymond 8910 End Rider Pallet Truck, floor pads
    Raymond lift trucks are engineered for Eco-Performance

    Floor Pads

    Wrap-around padded lean points and vibration-absorbing floor pads maximize comfort.
    Floor Pads
  • Raymond 8910 End Rider Pallet Truck, center tire
    Raymond lift trucks provide versatile material handling solutions

    Automatic Drive Tire Centering

    Automatic drive tire centering upon start up and auto slow-down when cornering improve load handling and minimize product and facility damage.
    Automatic Drive Tire Centering

Move Comfortably Over Longer Distances

Ideal for long hauls and congested work areas, the Raymond 8910 features a roomy, operator compartment for enhanced comfort and security. The pallet truck features intuitive, easy-to-use controls, and offers exceptional maneuverability with low-effort electric steering and electronic braking.

  • Battery: 24 volt
  • Capacity: 6,000 lbs. or 8,000 lbs.
  • Fork Length: Available in multiple fork lengths and widths
  • Loaded Travel Speed: 6.5 mph and 6.2 mph
  • Unloaded Travel Speed: 9 mph
  • Share:

Built to Perform

  • Raymond 8900 Riding Pallet Truck drive motor

    Durable Drive Motor

    The right-sized drive motor provides durable performance to stand up to the most demanding applications, without added weight to slow down your operations.
  • Raymond 8900 Riding Pallet Truck Lift and Go Undercarriage Protection

    Lift and Go Programmability

    Raymond’s exclusive programmable feature lets you reduce travel speed to train operators to travel with forks elevated to prevent unnecessary wear to the undercarriage over dock plates.
  • Raymond 8900 Riding Pallet Truck Durable Underbody construction

    Heavy-Duty Undercarriage

    The undercarriage is steel-reinforced throughout, with heavy-duty pins and bushings, and forks constructed with 50% bigger internal strengtheners and 50% thicker skid bars, all designed to handle maximum workloads.

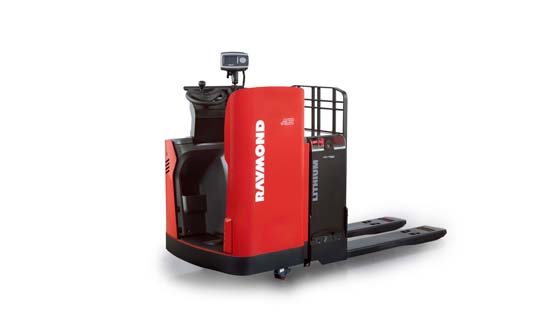

  • Raymond 8910 End Rider Pallet Truck, red, beauty shot

    ACR System

    Our exclusive ACR System provides quick and efficient AC traction and smooth, responsive control. ACR delivers more uptime, fewer battery changes and fewer moving parts resulting in less maintenance needed and lower maintenance costs.
  • Raymond 8910 End Rider Pallet Truck, control modules

    Battery Discharge Indicator

    Battery Discharge Indicator with Lift Interrupt and Hour Meter helps to prevent damage to the motor’s electrical components caused by over-discharging the battery.
  • Raymond 8900 Riding Pallet Truck

    Efficient by Design

    Sourcing best-in-class components, then fine-tuning and calibrating them for peak performance, means longer lasting components and greater efficiency for your operation.
  • Raymond 8900 Riding Pallet Truck operator's compartment

    Shift-Long Comfort

    The 8910 end rider pallet truck provides a roomy platform with low step height and multiple lean points to allow postural relief over the course of a shift.
  • Raymond 8900 Riding Pallet Truck with PowerSteering


    PowerSteer comes standard on the 8910 end rider pallet truck, significantly reducing the effort required to maneuver the truck, resulting in increased operator comfort over the course of a shift.
  • Raymond 8910 End Rider Pallet Truck, center tire

    Convenient Drive Tire Access

    The drive tire can be easily changed out in just minutes, minimizing your downtime.
  • Raymond 8900 Riding Pallet Truck Durable Underbody construction

    Heavy-Duty Components

    From the stainless pins and composite bushings to the strong tail fork castings and tough casters, the 8910 end rider pallet truck is built with heavy-duty, long-lasting components that are engineered to handle your heaviest loads.
  • Raymond 8000 Series Pallet Trucks Stainless Steel Pins

    Stainless Pins

    Provide longer component life and easier maintenance of the undercarriage. Standard steel pins commonly rust and corrode. The use of stainless steel pins in many cases extends the overall life of the bushings and undercarriage assembly of your pallet truck.
  • Raymond 8900 Riding Pallet Truck tapered forks

    Smooth Pallet Entry

    Raymond pallet jacks feature forks designed for easy pallet entry and exit. Forks are tapered from side to side and top to bottom, allowing smoother transition, along with a streamlined fork thickness for better clearance.
  • Raymond 8910 End Rider Pallet Truck, operator, truck display

    More Uptime with ACR

    Our exclusive ACR System delivers smooth control and quick acceleration to help you move more product faster.

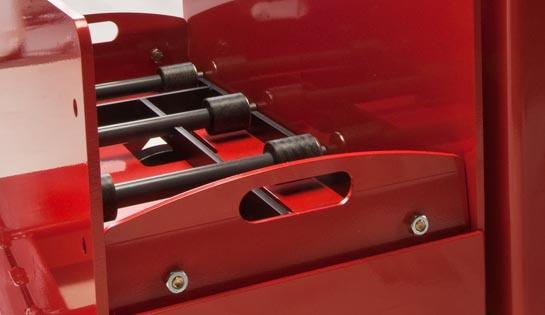

  • Raymond 8900 Riding Pallet Truck battery compartment roller option

    Battery Compartment Rollers

    Optional rollers in the bottom of the battery box and sidegates on the right and left hand sides can be furnished to allow easy removal of the battery.

  • 8910 Raymond End Rider Pallet Jack

    Cold Storage Conditioning

    Cold Storage Conditioning is applied to a number of hydraulic, mechanical, and electrical components on the truck to help maintain performance in colder operating environments.

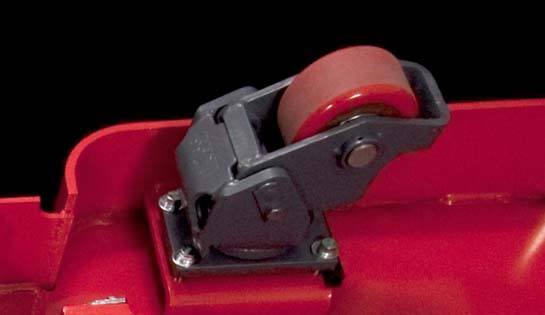

  • Raymond 8900 Riding Pallet Truck heavy duty casters option

    Heavy-Duty Casters

    Ensure superior load handling and provide additional ride comfort.

  • Raymond 8900 Riding Pallet Truck with Operator Compartment Sensor System

    Operator Compartment Sensor System (OCSS)

    OCSS helps to reinforce the need for the operator to assume and maintain a proper operating position. Different configuration settings are available depending on the task at hand; for example to restrict travel if the operator has not assumed the proper riding operating position or alternatively configured so that the operator may assume either the order picking position outside of the truck or the riding position.

  • Cold Storage Environments

    Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions; testing and proving our systems in extreme cycles of freezing and thawing.

  • Horizontal Transport

    Applications should not burden a truck with extensive capability to only transport horizontally. Rider pallet trucks are a cost effective method for horizontal transport where stacking is not required. Pallet trucks offer order picking functionality, are available in various fork lengths to maximize productivity, and offer a wide variety of operating positions to enhance operator comfort and minimize fatigue.

  • Truck Loading and Unloading

    Improve your dock operation productivity with Raymond pallet jacks. Our riding pallet trucks are ideal for breakdown of pallets removed from trailers, long runs to P&D stations, or a combination of both, offering a wide variety of operating positions that are engineered to enhance driver comfort and minimize fatigue for this specific application.

  • 8000 Series Pallet Trucks Video

    From the heavy-duty undercarriage to the rugged polymer cover that won't rust, fade or dent, Raymond pallet jacks are built with the right material for the job. With fewer and longer lasting components that require less maintenance, and engineered to handle high volume dock work, horizontal transportation and low-level order picking with ease.

  • Powersteer Pallet Trucks

    Raymond's Power Steer technology reduces steer effort required on our pallet jacks up to 90%, enabling your operator to move more product faster. Take productivity and comfort to a whole new level for your horizontal transport, order picking and dock work needs.
