8210 Electric Pallet Jack Motorized Walkie Pallet Jack
-
-
Click2Creep
Provides superior maneuverability at slower controlled speeds.Click2Creep -
Debris Diversion
Rubber skirting directs light debris away from the drive tire.Debris Diversion -
Electric Brake Release
Allows for release of the brake during low battery conditions without removing the covers.Electric Brake Release -
Ergonomic Control Handle
Dual throttle controls are easy to reach and operate.Ergonomic Control Handle -
Lift and Go
Lets you reduce travel speed to train operators to travel with forks elevated to prevent unnecessary wear.Lift and Go -
Polymer Stabilizer Blocks
Unlike steel blocks, these absorb impact to protect the truck and retail floors.Polymer Stabilizer Blocks
Better Engineering. Proven Technology.
The Raymond 8210 powered pallet jack with AC power provides unparalleled maneuverability to navigate in tight spaces – congested store aisles, busy docks and pinwheeling in the back of trailers. Operators will appreciate the smooth, controlled operation and your business will benefit from the increased strength and energy efficiency the 8210 motorized pallet jack delivers without sacrificing durability.
- Battery: 24 volt
- Capacity: 4,500 lbs.
- Frame Width: 28 inch overall width
- Power System: AC Traction Control
Electric Pallet Jacks Built To Perform: Durability, Ergonomics, Maintainability, Maneuverability, Productivity
Operators need precise control to carefully maneuver the load to minimize risk of injury or damage to the truck, product, or trailer. Smooth, precise speed control and a tighter turning radius are key to increasing maneuverability. Whether you're pinwheeling in the back of trailers or navigating lift gates with inches to spare, you'll turn tighter and with more confidence with the 8210.
-
AC Traction Control
Provides seamless speed transitions, allowing the operator the control needed to smoothly move the truck one inch at a time. -
Click2Creep
Raymond's exclusive Click2Creep feature provides unmatched maneuverability. Click2Creep automatically reduces travel speed and allows the truck to be operated with the handle tucked tightly to the tractor for pinwheeling in trailers, and providing superior maneuverability at a slower, controlled speed. -
Static Torque Control
With static torque control, the 8210 walkie pallet truck separates speed from torque, giving operators the power they need to maneuver the 8210 walkie pallet truck up and over lift gates and curbs with smooth, controlled operation at all speeds.
-
AntiRoll Braking
Prevents the unit from rolling when parked on uneven surfaces — ensuring the truck’s movement is controlled until the operator requests travel. -
Auto Power Off
Our exclusive Auto Power Off feature monitors truck usage and powers the unit down when idle, preserving battery capacity to keep you running for a full day’s work. -
Electric Brake Release
This feature releases the electric brake during low battery conditions without having to remove the truck covers. Our exclusive design retains braking ability when the handle is in the brake position, increasing operator control.
-
Lift and Go
A Raymond exclusive, this technology lets you reduce travel speed to train operators to travel with forks elevated to prevent unnecessary wear over dock plates, lift gates and curbs. -
Ductile Iron
Ductile iron in the frame supports the drive motor with almost twice the yield strength of steel. Ductile iron bell cranks and wheel forks provide a more durable undercarriage construction. -
High Strength Low Alloy Bumper
HSLA is 20 to 30% lighter than low‐carbon steel while providing the same strength. In impact testing, the Raymond bumper, which combines HSLA material with its extruded, ribbed design, proved 3 times stronger than competitive bumpers but weighs less.
-
Fully Programmable
Programmable performance parameters let managers customize truck performance to fit the work environment and operator needs. -
Ergonomic Control Handle
Raymond's ergonomically contoured handle features easy‐to‐reach controls that are intuitive to learn and operate. -
Tote and EBar
The optional storage tray and accessory bar put the operators tools at their fingertips. The powered accessory bar interfaces with RAM-mounted accessories for additional conveniences such as a work light and fan.
-
Poly Carbonate Covers
Light weight yet durable, our snap fit poly covers provide the durability you need, yet secure without screws for quick and easy service access. -
Removeable Bumper
The high-strength low alloy bumper is lightweight yet resilient and removes easily for convenient service access. -
Stainless Pins
Operating in wet environments corrodes steel pins. Stainless steel undercarriage pins are standard to prevent corrosion and simplify service
-
Calculate Your Cost Savings by Switching to Lithium-Ion
Our line of lithium-ion batteries, compatible with our family of forklifts, showcases our dedication to advancement. These batteries are designed to seamlessly integrate into your lift trucks providing advanced data insights and wireless communication for remote diagnostics and upgrades.
Use our Lithium-ion ROI calculator to calculate the cost savings you could be receiving by switching to Lithium-ion batteries within your current fleet.
Walkie Pallet Truck Options
-
Lithium-ion Batteries
These batteries are designed to seamlessly integrate into your lift trucks providing numerous benefits including longer runtime, quicker recharge time, increased performance, and decreased cost of ownership. -
Cold Storage Conditioning
All temperature hydraulics, transmission oils and temperature sensing components protect control systems — assuring peak performance and productivity, while stainless steel undercarriage pins protect from corrosion and rust. -
PIN Code Pad
The optional personal identification number (PIN) code pad provides password protection for additional security. Store up to 10 different passwords to prevent unauthorized operation. -
Telematics
This comprehensive telematics suite of solutions tracks and reports on vehicle and operator utilization and data to help drive productivity across your operations. -
Factory-Installed Weigh Scales
Whether you’re shipping, receiving, order picking or piece counting, Raymond’s 8210 Walkie Pallet Truck with factory-installed, fully integrated mobile weigh scales can save you valuable time and money on every load, every day. -
On Board Charger Reducing total cost of ownership by separating the battery/charger combination, the Delta-Q integrated charger enables a convenient and operator friendly charging capability for increased efficiency. -
Accessory Bar
Interfaces with RAM-mounted accessories to put additional operator tools at their fingertips; available with optional work light and fan. -
Large Storage Tote
The optional tote helps to keep work tools organized and at your operators fingertips for added convenience and productivity throughout the shift. -
Extreme Environment Protection
Hot-dip galvanization and electronics coatings protect components and extend the life of the truck in wet, corrosive environments.
Applications
-
Cold Storage
Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions; testing and proving our systems in extreme cycles of freezing and thawing.
-
Dock and Delivery
The Raymond 8210 walkie pallet truck is ideal for use on-board delivery trucks. This compact AC-powered walkie is exceptionally maneuverable and allows pin wheeling in trailers for maximum cube.
-
Processing Applications
Raymond offers Extreme Environment Corrosion Protection with hot-dip galvanization on the 8210 electric walkie pallet truck to protect trucks used in wet, caustic and briny applications from moisture and to flush contaminants.
-
UL EE Applications
This lift truck complies with Underwriters Laboratories (UL) 583. Raymond® Type E and EE trucks are designed and manufactured to operate in classified locations as defined in NFPA 505. Type E and EE products are tested and certified by Underwriters Laboratories (UL).
8210 Walkie Pallet Jack Information
Motorized Pallet Jack Videos
-
8210: Power Proven to Perform
The Raymond 8210 motorized pallet jack delivers power proven to perform. With proven technology and smarter, stronger and more efficient design, the 8210 Walkie Pallet Truck delivers power and battery-saving features to tackle the job at hand. -
8000 Series Pallet Jacks
From the heavy-duty undercarriage to the rugged polymer cover that won't rust, fade or dent, Raymond pallet jacks are built with the right material for the job. With fewer and longer lasting components that require less maintenance, and engineered to handle high volume dock work, horizontal transportation and low-level order picking with ease.
You May Also Like:
8250 Walkie Pallet Jack Powered by Lithium Ion
The Raymond 8250 lithium pallet jack delivers increased power and efficiency so that you can run longer.
Learn More

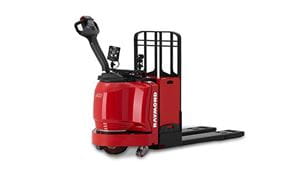

8310 Walkie Pallet Truck
