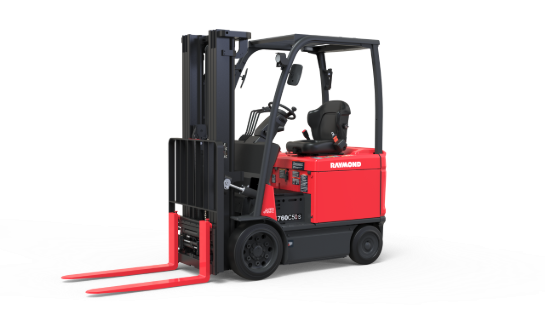

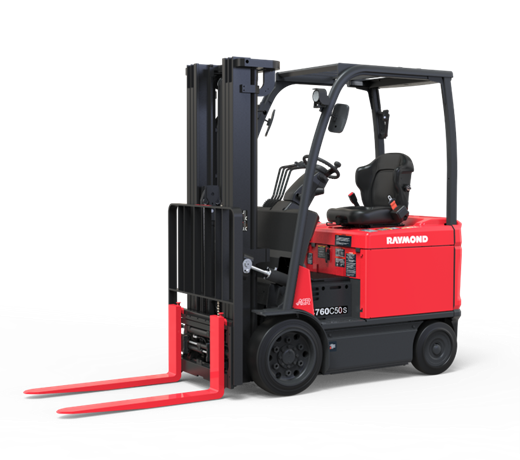

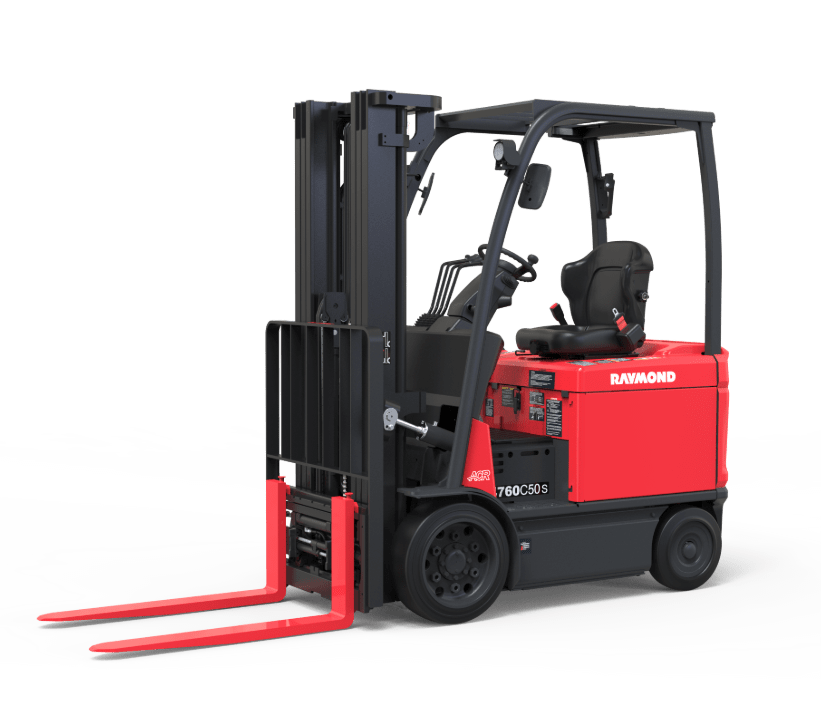

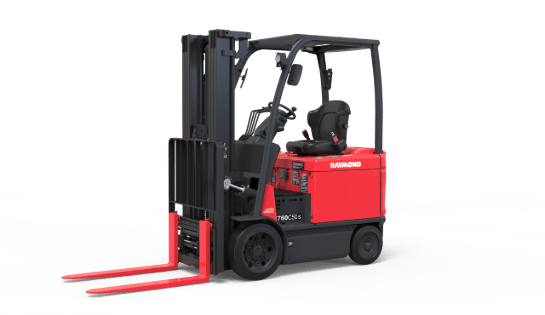

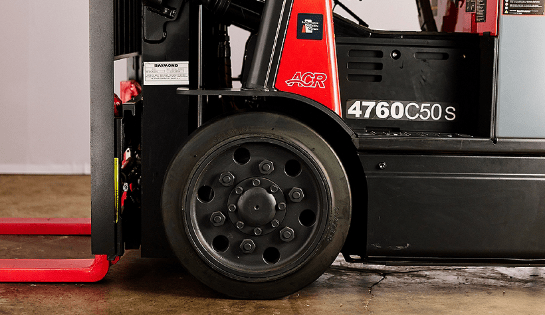

4760 4-Wheel Sit Down Truck Sit Down Forklift
-
-

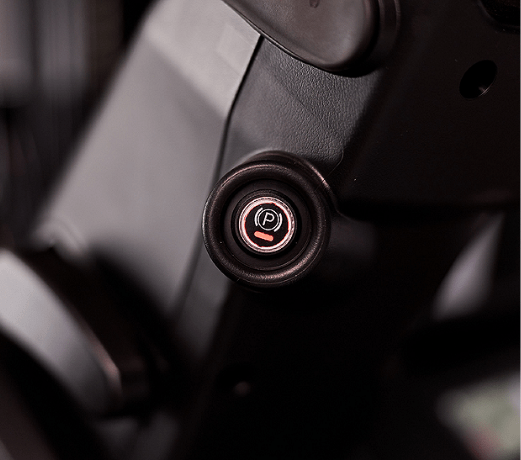

Auto Park Brake
Space-saving, ergonomic, push-button park brakeAuto Park Brake -

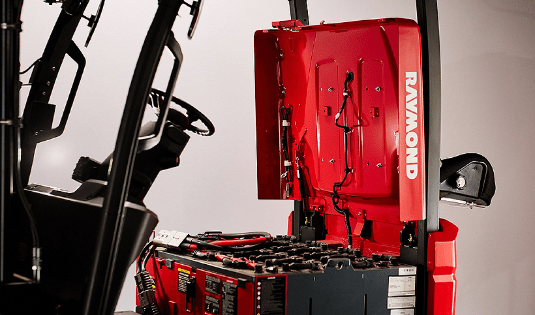

Improved Energy Efficiency
Increased battery regeneration during operation for longer run timesImproved Energy Efficiency -

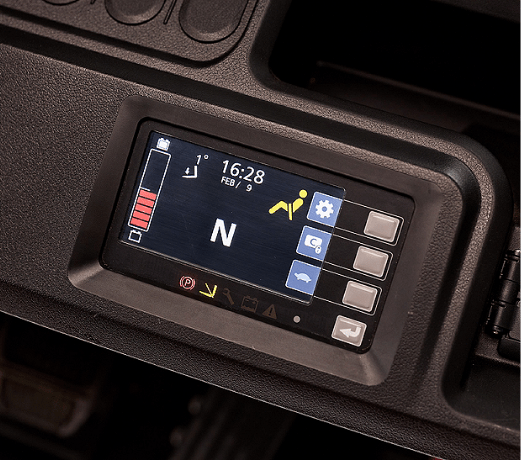

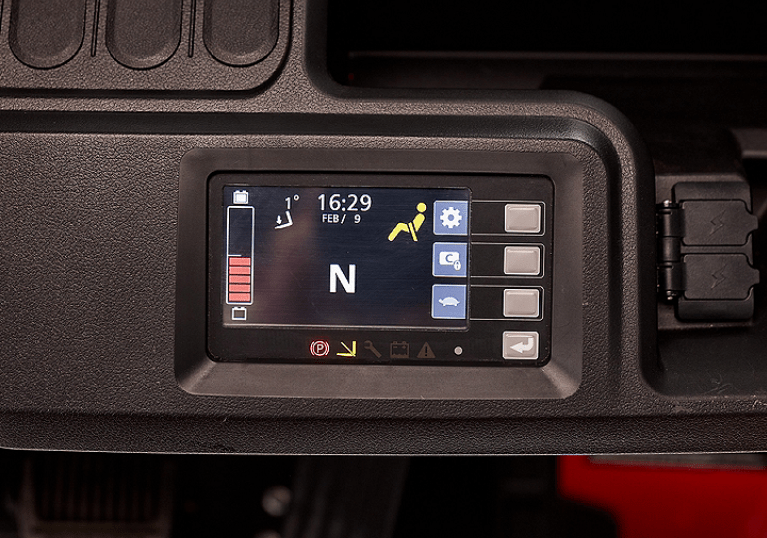

Multifunction Color Display
Redesigned dash with color operator displayMultifunction Color Display -

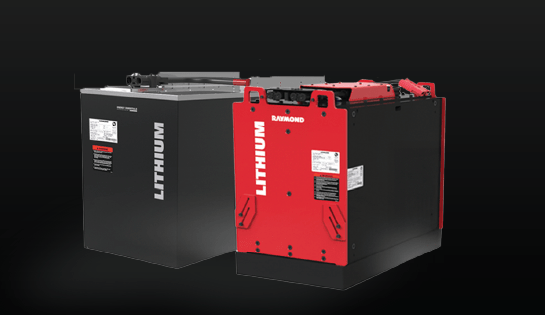

Optional Lithium-Ion Battery
Avoid unnecessary downtime with truck/battery data-sharing offering visibility into state of charge, fault codes, and maintenance requirements.Optional Lithium-Ion Battery
High-Performance, High-Efficiency
Raymond 4760 Sit-Down Counterbalanced Trucks let you stay ahead of the competition by delivering the energy efficiency you need without compromising on performance and productivity.- Battery: 36 volts or 48 volts
- Capacity: 4,000 lbs. to 6,500 lbs.
- Travel Speed: Up to 12.1 mph*
-
Turning Radius**:
68.5" - 78.7"
*based on capacity and voltage
**based on capacity
-
Calculate Your Cost Savings by Switching to Lithium-Ion
Our line of lithium-ion batteries, compatible with our family of forklifts, showcases our dedication to advancement. These batteries are designed to seamlessly integrate into your lift trucks providing advanced data insights and wireless communication for remote diagnostics and upgrades.
Use our Lithium-ion ROI calculator to calculate the cost savings you could be receiving by switching to Lithium-ion batteries within your current fleet.
Productivity
Programmable Performance

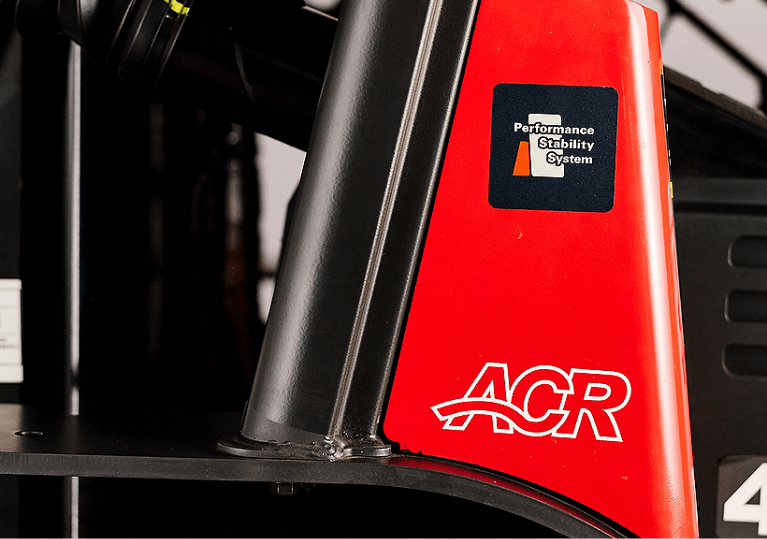

Performance Stability System
Load Handling

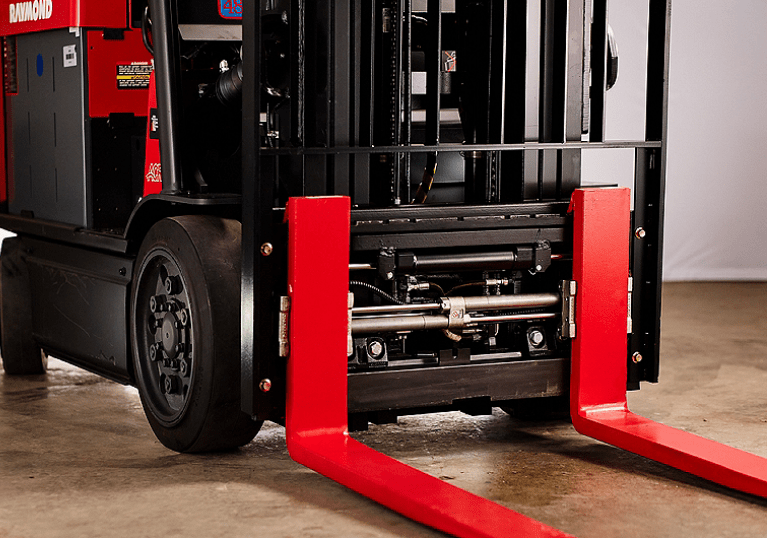

Integral Sideshift
Ergonomics
-
Auto Park Brake
Space-saving, ergonomic, push-button park brake.

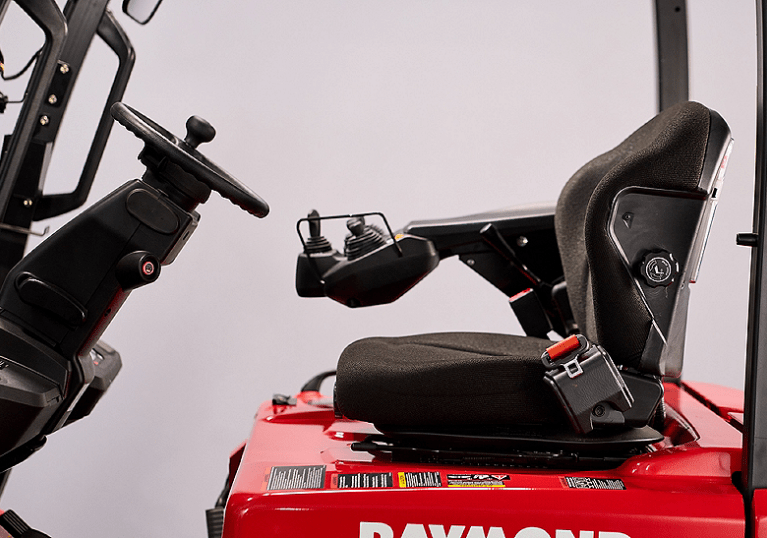

Full Suspension Seat
Full suspension seat with lumbar and tilt adjustments enhance operator comfort and productivity.

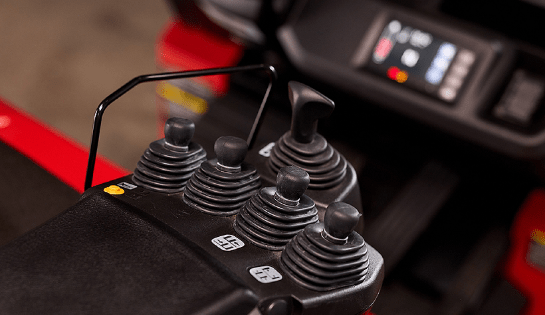

Hydraulic Control Levers
Allow the operator to perform multiple commands simultaneously.
-
Operator Compartment
Provides left or right entry into a spacious compartment with a fully adjustable seat and tilt steering wheel.
Visibility
Open view 3-stage mast gives operators a clear line of sight to the load for increased efficiency and reduced product damage (4,000 lbs. and 6,500 lbs. capacity).
Efficiency
-
Higher Productivity
In its highest performance mode, with optional electric power steering, the 4760 achieved the highest level of productivity (cycles per day) -
Lower Energy Consumption
At equivalent speed settings, the 4760 delivered 10–15% lower energy consumption (Amp-hours per hour)
Maintainability
Options
-
Attachments
Raymond Sit-Down Counterbalanced lift trucks, known for their superior quality and versatility, can be taken to the next level by incorporating a variety of Cascade attachments designed to push, pull, clamp, or rotate virtually any load. We can work with you to determine the ideal attachment for your forklift and tailor it to your unique operation. -
Cold Storage
This package protects sensitive lift truck control systems with hydraulic, mechanical and electrical components that are matched to different temperature levels. -
UL EE Label
This lift truck complies with Underwriters Laboratories (UL) 583. Raymond Type E and EE trucks are UL-tested and UL-certified and designed and manufactured to operate in classified locations as defined in the National Fire Protection Association's NFPA 505. -

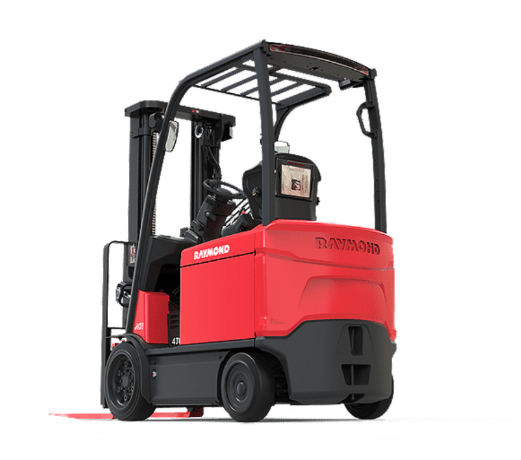

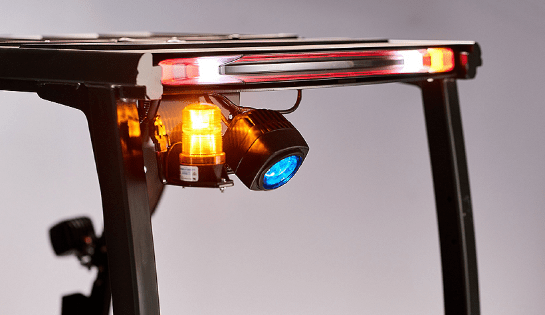

Rear Combination Light
Alert others in the vicinity by adding turn signals, brake lights, and reverse indicators all attractively integrated into the rear overhead guard. -
Electric Power Steering
Steer by wire system that replaces traditional hydraulic steering system. An electric actuator replaces the hydraulic cylinder and offers improved energy efficiency and customizable steering feeling. -
Lithium-ion Battery
Enhance productivity with long run times, fast charging, and convenient opportunity charging.
Applications
-
Attachments
Raymond counterbalanced sit-down forklift trucks can use specialized load handling attachments such as slip sheets and carton clamps.
-
Bulk Storage
Raymond offers a wide range of forklift trucks that efficiently maneuver through bulk storage areas. With hundreds of combinations of heights, capacities and features as well as a great range of operational applications, Raymond stand-up fork trucks can meet your bulk storage needs, no matter how specialized.
-
Cold Storage
Refrigerated warehouses, blast freezers and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions, to test and prove our systems in extreme cycles of freezing and thawing.
-
Specialty Rack
Raymond counterbalanced forklift trucks can interface with every industry-standard warehouse rack. If you have selective, drive-in/drive-thru, cantilever, pallet flow or push-back racks, Raymond has a solution that will help maximize your storage capacity and productivity.
-
Truck Loading and Unloading
Improve your dock operation productivity with Raymond stand up counterbalanced trucks. Counterbalanced trucks are ideal for operations that require breakdown of pallets removed from trailers, long runs to P&D stations or a combination of both. Raymond lift trucks offer a wide variety of operating positions that are engineered to enhance driver comfort and reduce fatigue for this specific application.
