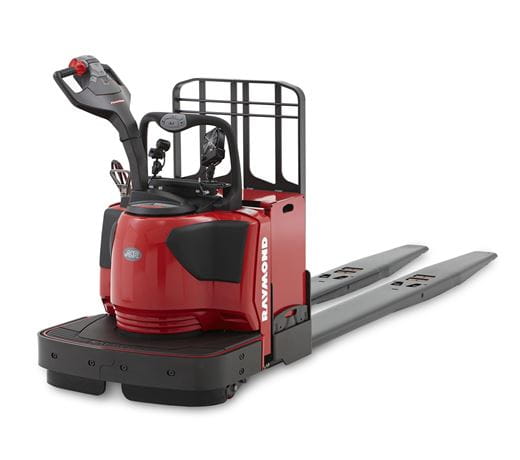

8410 Pallet Jack Electric Pallet Truck
-
-
Pick2Pallet™ LED Light System
Increase picking accuracy with Raymond’s exclusive Pick2Pallet system, which reinforces product placement when batch picking.Pick2Pallet™ LED Light System -

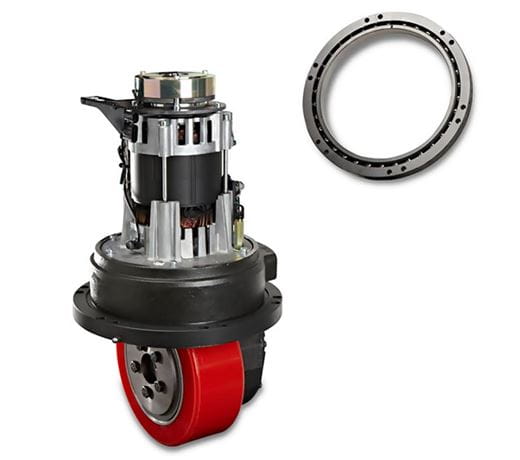

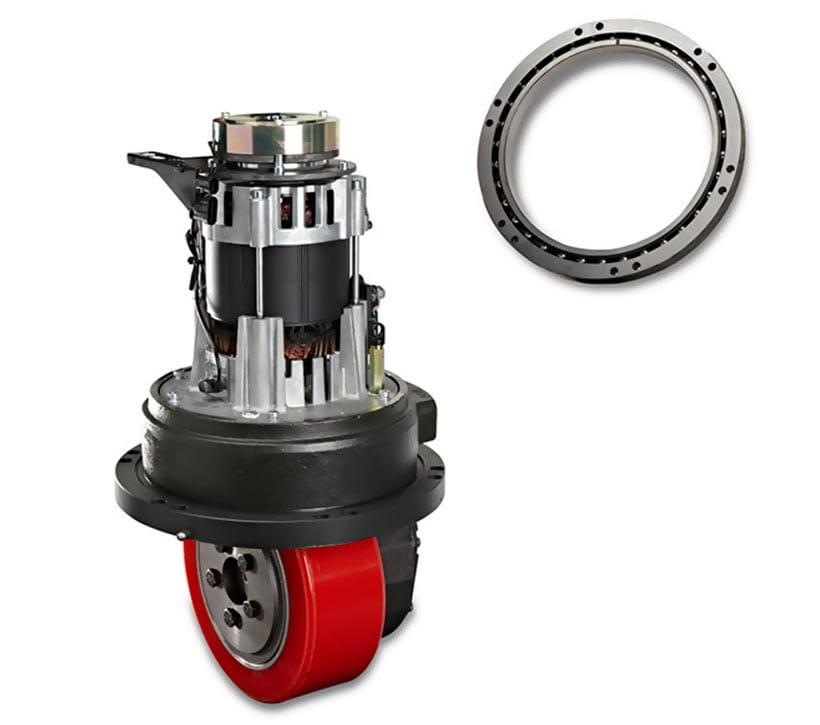

Exclusive ACR System
Finely tuned engineering provides quicker acceleration, smooth, precise speed control, longer battery life and less downtime.Exclusive ACR System -

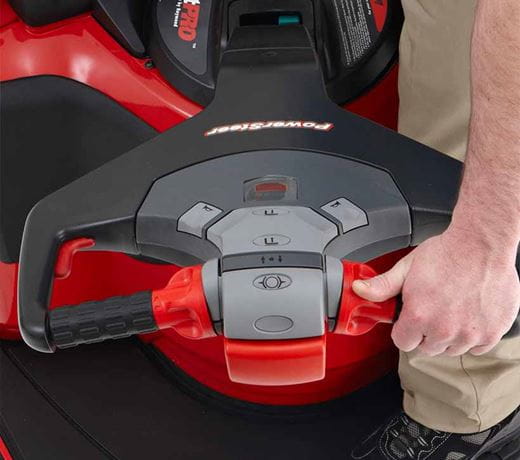

Intuitive Controls
The handle and grab bar are designed to fit the hand, and throttle controls allow for comfortable adjustment of speed and acceleration.Intuitive Controls -

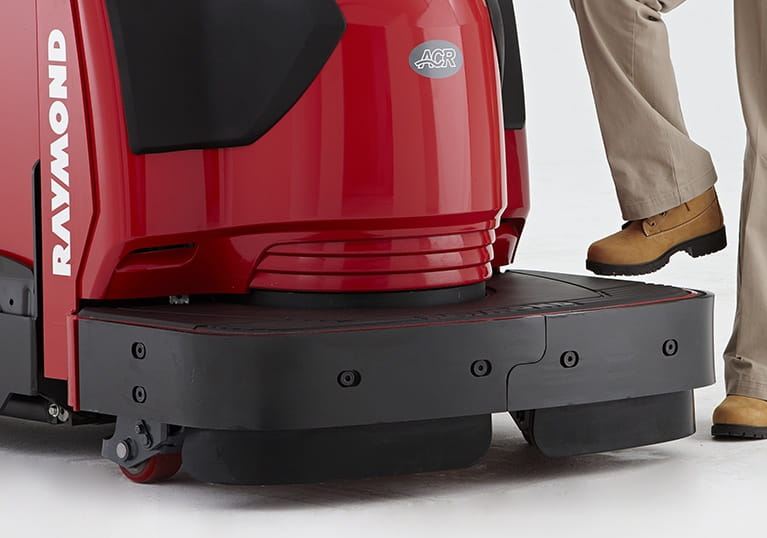

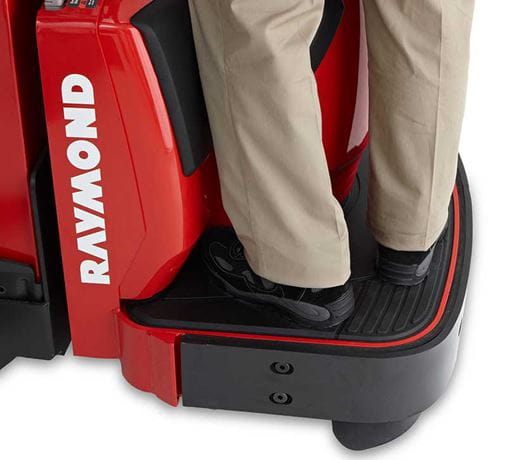

Keep Operators Moving
Ergonomic design, including a low step height, cushioned platform and lean points, enhance operator comfort throughout the shift.Keep Operators Moving -

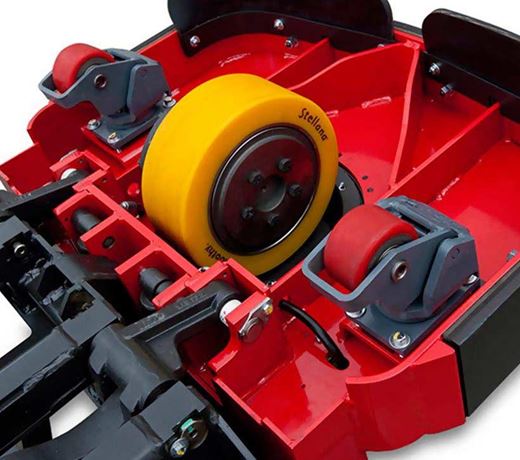

Ductile Iron Undercarriage
Bell cranks and wheel forks engineered from ductile iron are stronger and more resilient than steel and provide longer component life.Ductile Iron Undercarriage
Versatile Enough to Do it All
This pallet jack is versatile enough to do it all – while standing up to high throughput and the most demanding applications. From dock work and horizontal transport to low-level order picking, this heavy-duty electric pallet truck delivers energy efficiency, less downtime and lower maintenance costs.
- Battery: 24 volt
- Capacity: 6,000 lbs. or 8,000 lbs.
- Fork Length: Available in multiple lengths and widths
- Loaded Travel Speed: 6.5 and 6.2 mph
- Unloaded Travel Speed: 9 mph
-
Calculate Your Cost Savings by Switching to Lithium-Ion
Our line of lithium-ion batteries, compatible with our family of forklifts, showcases our dedication to advancement. These batteries are designed to seamlessly integrate into your lift trucks providing advanced data insights and wireless communication for remote diagnostics and upgrades.
Use our Lithium-ion ROI calculator to calculate the cost savings you could be receiving by switching to Lithium-ion batteries within your current fleet.
Productivity
-

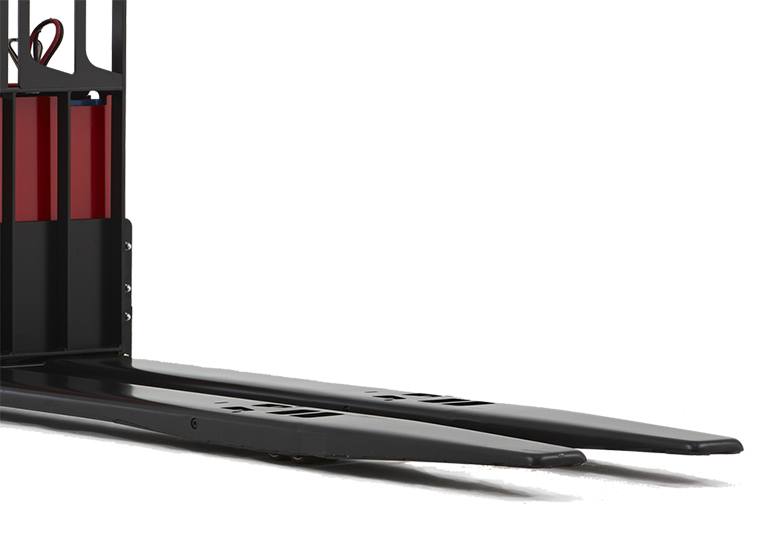

Smooth Pallet Entry
Raymond pallet jacks feature forks designed for easy pallet entry and exit. Forks are tapered from side to side and top to bottom, allowing smoother transition, along with a streamlined fork thickness for better clearance. -

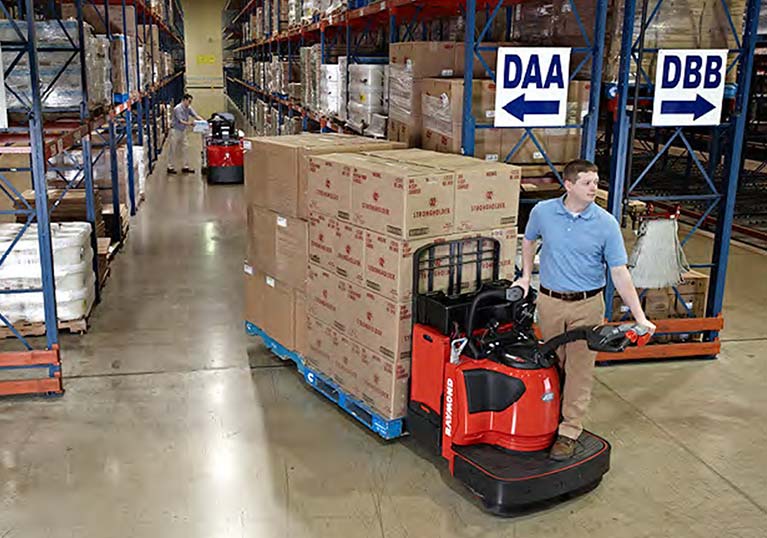

More Uptime with ACR
Our exclusive ACR System delivers smooth control and quick acceleration to help you move more product faster. In third-party testing, the Raymond 8410 electric pallet jack performed cycle times 6% faster than the competing model. -
Industry-Leading Speeds
Operators and managers alike appreciate programmable travel speeds, which allow you to customize truck performance to suit different operator skill levels. And with smooth, quick acceleration, you’ll get more picks per hour.
Durability
-
Lift and Go Programmability
Raymond’s exclusive programmable feature lets you reduce travel speed to train operators to travel with forks elevated to prevent unnecessary wear to the undercarriage over dock plates.
-
Designed for Maximum Workload
With ductile iron components and steel-reinforced throughout, the 8410 end rider pallet jack is designed to withstand heavy-duty applications shift after shift.
Smarter Components

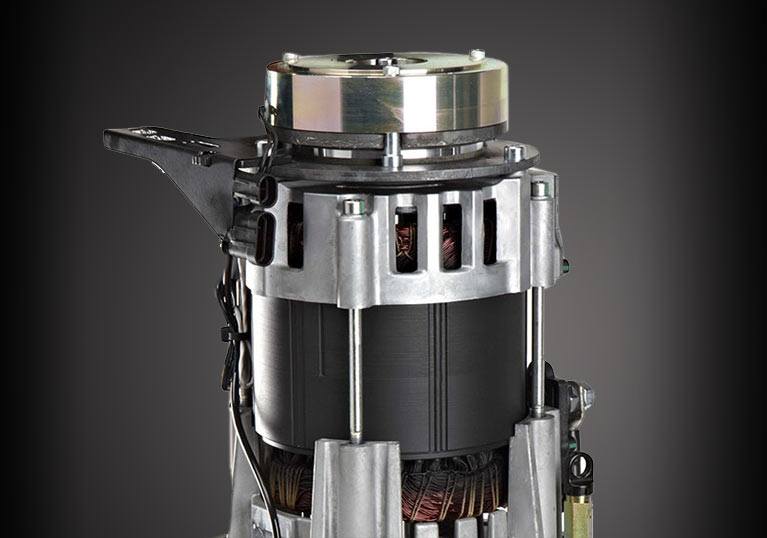

Stand up to tougher applications longer — from Hall Effect Sensors, which replace potentiometers that wear and require replacement, to electric brakes that minimize moving parts.
Ergonomics
Maintainability
-
Easy to Maintain
CanBus technology in the handle eliminates up to 40% of wiring, composite bushings never require greasing, the drive tire can be easily changed out in just minutes, electric brakes do not require adjustment, and both the handle and cover are easily removed by a few screws. -

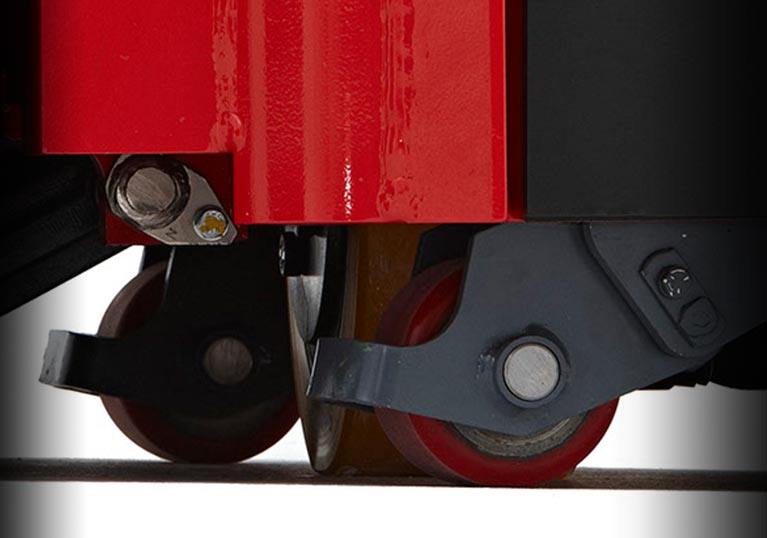

Heavy-Duty Components
From the stainless pins and composite bushings to the strong tail fork castings and standard heavy-duty casters, the 8410 electric pallet truck is built with heavy-duty, long-lasting components that are engineered to handle your heaviest loads. -
Lower Operating Costs

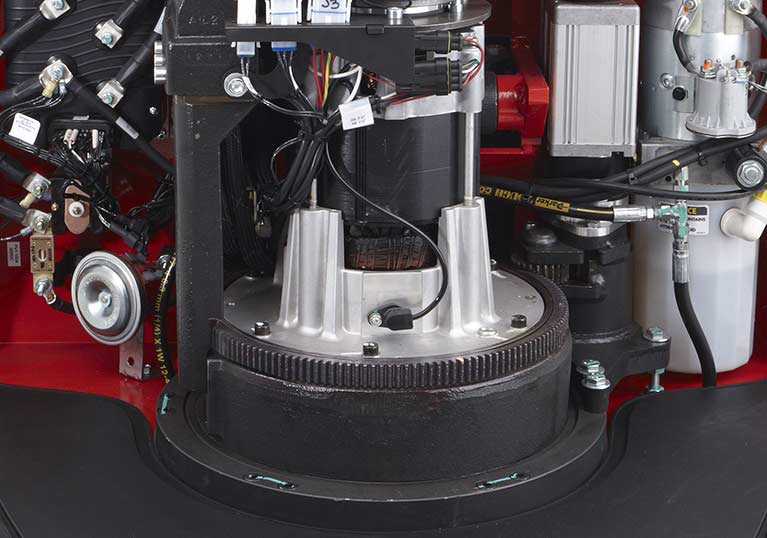

The ACR System has fewer components and requires less maintenance than DC motors and comparable AC systems, resulting in less downtime and lower operating costs for you.
Eco-Performance
Options
-

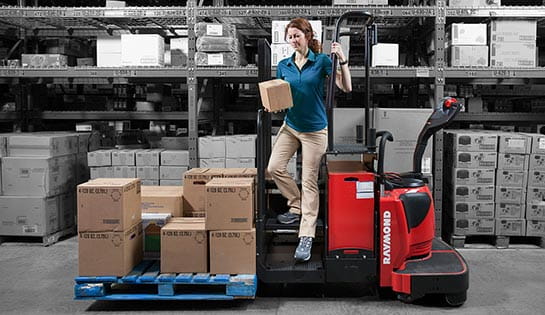

Step Up to Cost-Efficient 2nd Level Picking
The Raymond 8410 end rider pallet jack with 2nd level pick steps offers a cost-effective alternative to hydraulic lift order pickers. Ideal for operations with occasional low-level order picking needs, this pallet truck features a set of three pyramid steps—accessible from either side—leading to a picking platform for easy access to the second beam. -

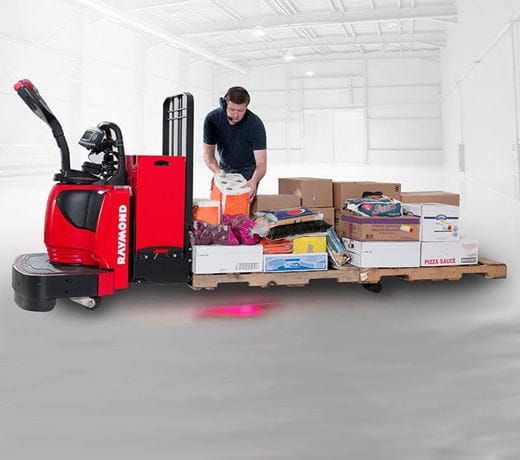

Pick2Pallet™ LED Light System
Increase picking accuracy with the Pick2Pallet™ LED Light System. Offered exclusively by Raymond, Pick2Pallet is designed to help reduce picking errors by using LED technology to visually reinforce product placement for order fulfillment in batch picking applications. -

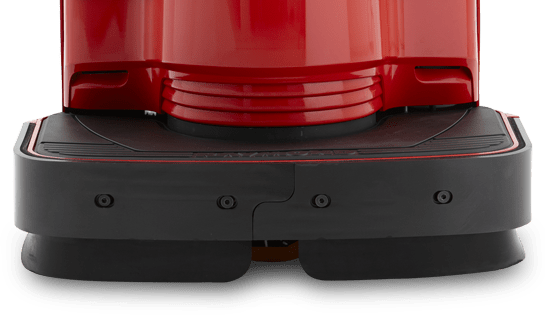

Heavy-duty Bumper Guard
Features 1/2 inch steel wrapped around a 1/2 inch rubber core to further absorb and diffuse impacts. Shown with the optional rubber bumper skirt, which helps prevent objects from going under the platform by reducing the clearance between the bumper and the floor. -

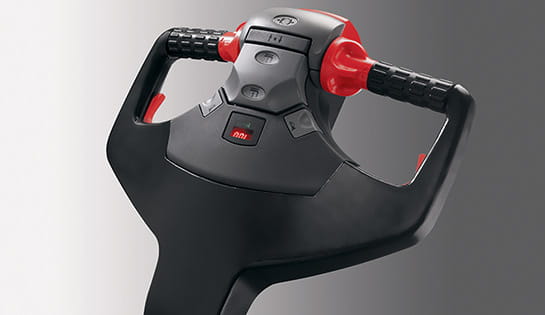

CoastPRO
While other pallet trucks require two hands to coast, our patented CoastPRO feature can be activated with just one hand. No levers, switches or plungers — instead, the operator has a conveniently located one-step tripper to jog the truck. -

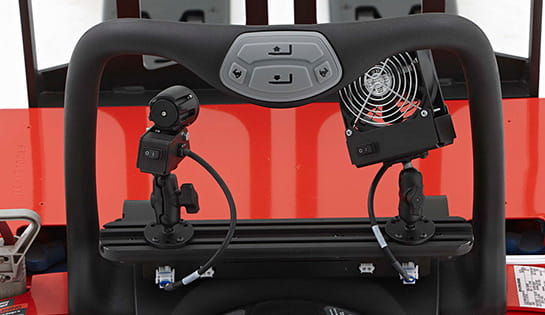

Accessory Bar
Interfaces with any RAM-mounted accessories to put additional tools at operators' fingertips. Shown here with the optional work light and fan. -

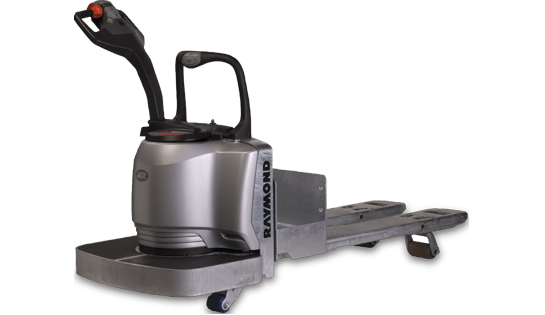

Extreme-Environment Corrosion Protection
Hot-dip galvanization of the truck frame, battery box, forks and undercarriage extends the life of trucks in wet, corrosive environments. Ideal for processing applications or other environments subject to harsh conditions or frequent washdowns. -

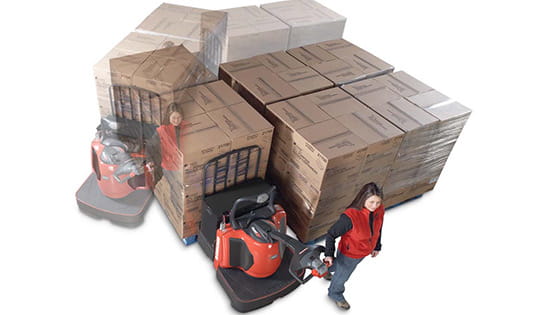

PowerSteer
Reduces effort to maneuver a pallet truck up to 90%, resulting in increased operator comfort over the course of a shift. And speed-sensitive steering gives operators steer assistance when they need it most — at slow speeds. -

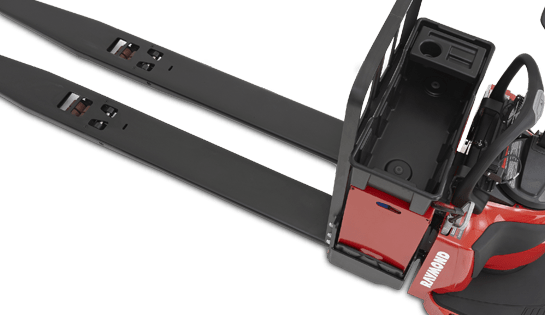

Storage Tote
The large storage tote helps keep work tools organized and at operators' fingertips for added convenience and productivity throughout the shift.
Applications
-
Cold Storage Environments
Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions — to test and prove our systems in extreme cycles of freezing and thawing.
-
Processing Environments
Trucks used in processing applications where there are wet, caustic and briny conditions can be protected from moisture and can flush contaminants with Raymond's Extreme Environment Corrosion Package (EECP).
-
Horizontal Transport
Applications should not burden a truck with extensive capability to only transport horizontally. Pallet jacks are a cost-effective method for horizontal transport where stacking is not required. Pallet trucks offer order picking functionality, are available in various fork lengths to maximize productivity, and offer a wide variety of operating positions to enhance operator comfort and minimize fatigue.
-
Low Level Order Picking
Boost throughput and pick rates with reliable, high-performance Raymond electric pallet jacks. We can customize our vast selection of pallet trucks, including fork length, width and a variety of options, to enhance efficiency in order picking applications. Let us customize a solution for you — from low and floor-level rider pallet trucks for order picking and truck loading and virtually everything in between.
-
Truck Loading and Unloading
Improve your dock operation productivity with Raymond pallet jacks. Our electric pallet trucks are ideal for breakdown of pallets removed from trailers, long runs to P&D stations, or a combination of both, offering a wide variety of operating positions that are engineered to enhance driver comfort and minimize fatigue for this specific application.
-
UL EE Applications
This lift truck complies with Underwriters Laboratories (UL) 583. Raymond Type E and EE trucks are UL-tested and UL-certified and designed and manufactured to operate in classified locations as defined in the National Fire Protection Association's NFPA 505.
