8910 End Rider Pallet Jack Electric Pallet Jack
-
-

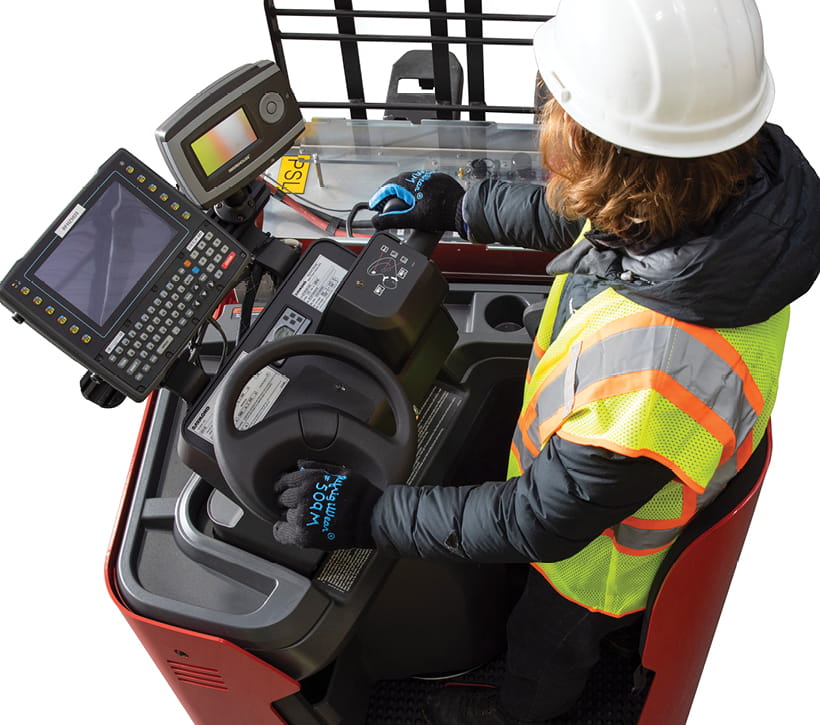

Operator Compartment
Accommodates a wider range of operators.Operator Compartment -

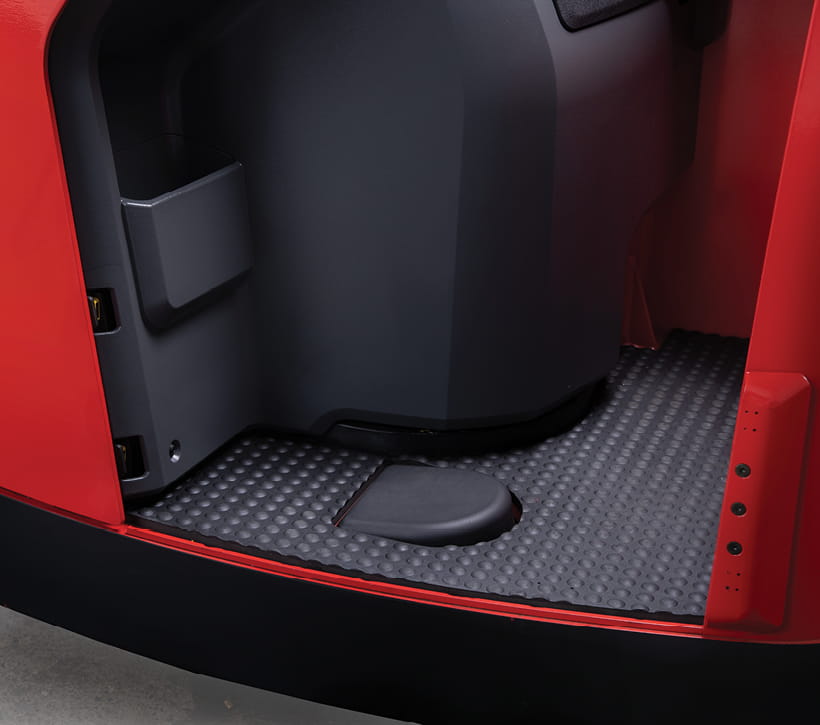

Floor Pads
Wrap-around padded lean points and vibration-absorbing floor pads maximize comfort.Floor Pads -

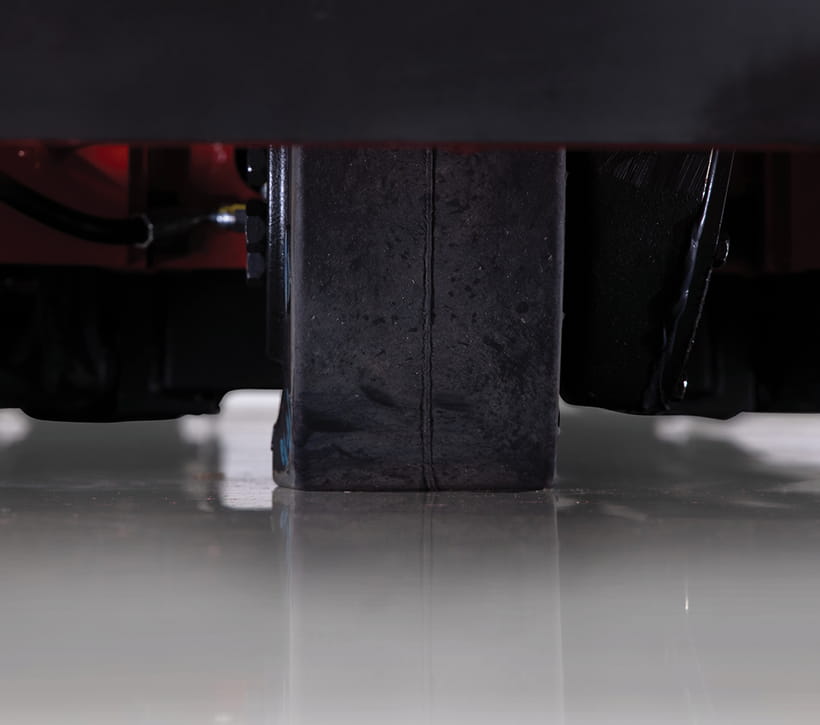

Automatic Drive Tire Centering
Automatic drive tire centering upon start up and auto slow-down when cornering improve load handling and minimize product and facility damage.Automatic Drive Tire Centering
Move Comfortably Over Longer Distances
Ideal for long hauls and congested work areas, the Raymond 8910 features a roomy, operator compartment for enhanced comfort and security. The pallet truck features intuitive, easy-to-use controls, and offers exceptional maneuverability with low-effort electric steering and electronic braking.
- Battery: 24 volt
- Capacity: 6,000 lbs. or 8,000 lbs.
- Fork Length: Available in multiple fork lengths and widths
- Loaded Travel Speed: 6.5 mph and 6.2 mph
- Unloaded Travel Speed: 9 mph
-
Raymond 8910 Certified by International Intralogistics and Forklift of the Year Award Organization
The 8910 End Rider Pallet Jack has been through three phases of rigorous testing and certification by the International Intralogistics and Forklift of the Year. Due to its adaptable, scalable, and flexible design, the Raymond 8910 can be tailored to specific facilities and applications with a variety of productivity-enhancing accessories and options. Learn more about IFOY and the strict criteria met for the 8910 to become certified.
-
Lithium-ion Batteries
Our line of lithium-ion batteries, compatible with our family of forklifts, showcases our dedication to advancement. These batteries are designed to seamlessly integrate into your lift trucks providing advanced data insights and wireless communication for remote diagnostics and upgrades.
Use our Lithium-ion ROI calculator to calculate the cost savings you could be receiving by switching to Lithium-ion batteries within your current fleet.
Built to Perform
-

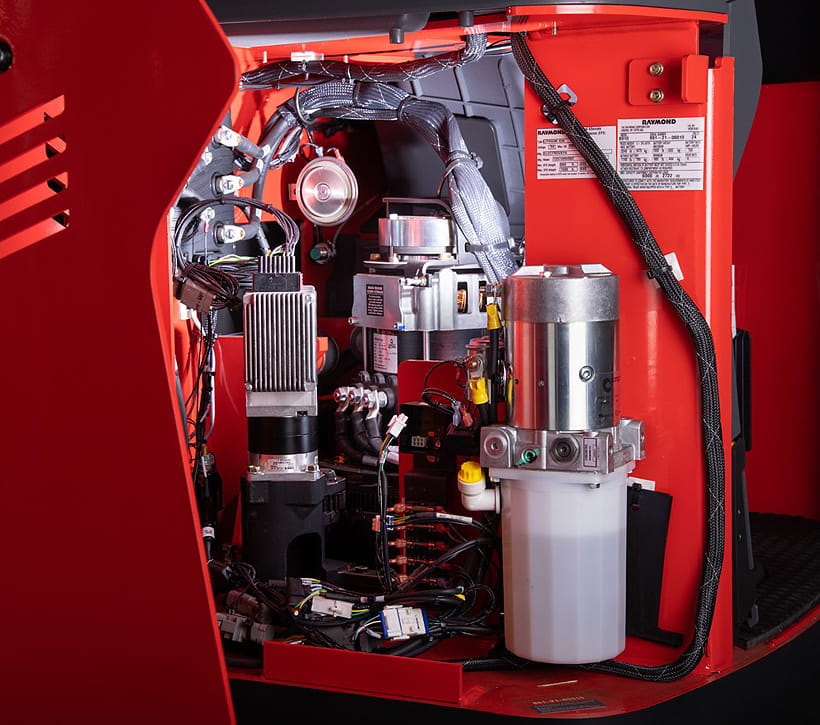

Durable Drive Motor
The right-sized drive motor provides durable performance to stand up to the most demanding applications, without added weight to slow down your operations. -
.jpg?rev=30910e93a55c42518ee15c1a0aa7a5ab&h=372&w=530&la=en&hash=99CD00284664977A1361604A9296A69D)
Lift and Go Programmability
Raymond’s exclusive programmable feature lets you reduce travel speed to train operators to travel with forks elevated to prevent unnecessary wear to the undercarriage over dock plates. -
Heavy-Duty Undercarriage
The undercarriage is steel-reinforced throughout, with heavy-duty pins and bushings, and forks constructed with 50% bigger internal strengtheners and 50% thicker skid bars, all designed to handle maximum workloads.
-
ACR System
Our exclusive ACR System provides quick and efficient AC traction and smooth, responsive control. ACR delivers more uptime, fewer battery changes and fewer moving parts resulting in less maintenance needed and lower maintenance costs. -
Battery Discharge Indicator
Battery Discharge Indicator with Lift Interrupt and Hour Meter helps to prevent damage to the motor’s electrical components caused by over-discharging the battery. -
Efficient by Design
Sourcing best-in-class components, then fine-tuning and calibrating them for peak performance, means longer lasting components and greater efficiency for your operation.
-
Shift-Long Comfort
The 8910 end rider pallet truck provides a roomy platform with low step height and multiple lean points to allow postural relief over the course of a shift. -
PowerSteer
PowerSteer comes standard on the 8910 end rider pallet truck, significantly reducing the effort required to maneuver the truck, resulting in increased operator comfort over the course of a shift.
-
Convenient Drive Tire Access
The drive tire can be easily changed out in just minutes, minimizing your downtime. -
Heavy-Duty Components
From the stainless pins and composite bushings to the strong tail fork castings and tough casters, the 8910 end rider pallet truck is built with heavy-duty, long-lasting components that are engineered to handle your heaviest loads. -
Stainless Pins
Provide longer component life and easier maintenance of the undercarriage. Standard steel pins commonly rust and corrode. The use of stainless steel pins in many cases extends the overall life of the bushings and undercarriage assembly of your pallet truck.
-

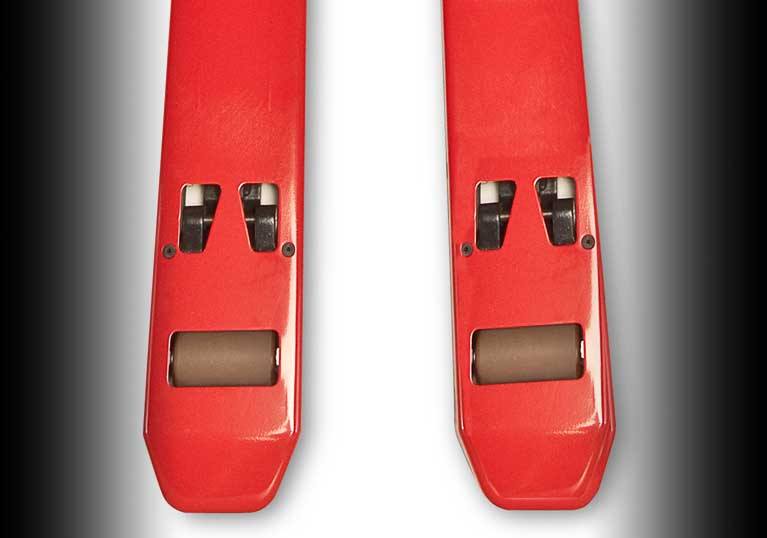

Smooth Pallet Entry
Raymond pallet jacks feature forks designed for easy pallet entry and exit. Forks are tapered from side to side and top to bottom, allowing smoother transition, along with a streamlined fork thickness for better clearance. -
More Uptime with ACR
Our exclusive ACR System delivers smooth control and quick acceleration to help you move more product faster.
-
Battery Compartment Rollers
Optional rollers in the bottom of the battery box and sidegates on the right and left hand sides can be furnished to allow easy removal of the battery.
-
Cold Storage Conditioning
Cold Storage Conditioning is applied to a number of hydraulic, mechanical, and electrical components on the truck to help maintain performance in colder operating environments.
-
Heavy-Duty Casters
Ensure superior load handling and provide additional ride comfort.
-
Operator Compartment Sensor System (OCSS)
OCSS helps to reinforce the need for the operator to assume and maintain a proper operating position. Different configuration settings are available depending on the task at hand; for example to restrict travel if the operator has not assumed the proper riding operating position or alternatively configured so that the operator may assume either the order picking position outside of the truck or the riding position.
-
Cold Storage Environments
Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions; testing and proving our systems in extreme cycles of freezing and thawing.
-
Horizontal Transport
Applications should not burden a truck with extensive capability to only transport horizontally. Rider pallet trucks are a cost effective method for horizontal transport where stacking is not required. Pallet trucks offer order picking functionality, are available in various fork lengths to maximize productivity, and offer a wide variety of operating positions to enhance operator comfort and minimize fatigue.
-
Truck Loading and Unloading
Improve your dock operation productivity with Raymond pallet jacks. Our riding pallet trucks are ideal for breakdown of pallets removed from trailers, long runs to P&D stations, or a combination of both, offering a wide variety of operating positions that are engineered to enhance driver comfort and minimize fatigue for this specific application.
-
Raymond® 8910 End Rider Pallet Truck
Ideal for long hauls and congested work areas, the Raymond 8910 features a roomy, operator compartment for enhanced comfort and security. The pallet truck features intuitive, easy-to-use controls, and offers exceptional maneuverability with low-effort electric steering and electronic braking.
-
